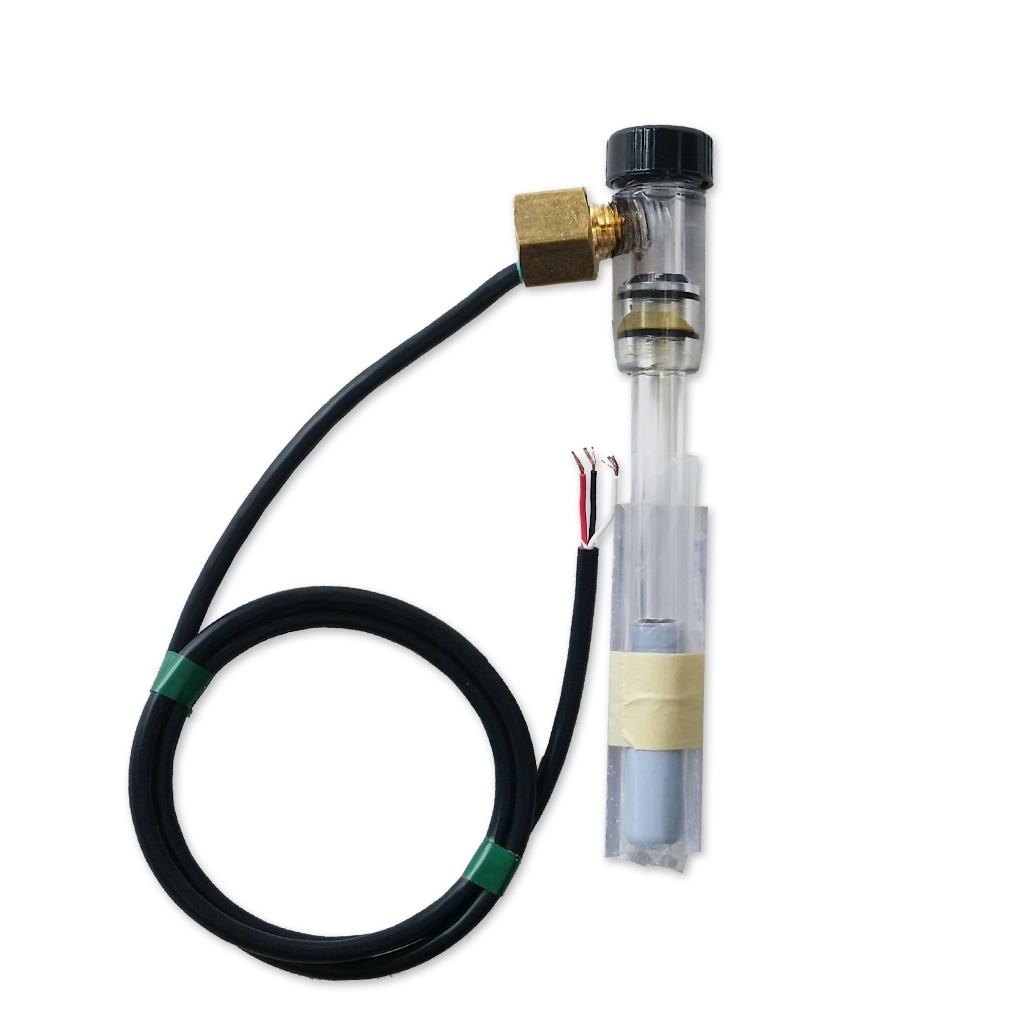

6" MLT tensiometer + RSU-Voltage 0-93 kPa, Ø 0.5" (blue ceramic)
160-110-072500
- Tensiometer_Irrometer_Model_MLT-FT_V2014-03_EN.pdf
- Tensiometer_Irrometer_Automation_wire_extension-FT_V2016-10_EN.pdf
- Tensiometer_Irrometer_Automation_RSU-V-Manual_V2016-10-21_EN.pdf
- Tensiometer_Irrometer_Reference_book-Manual_V2015-02_EN.pdf
- Tensiometer_Irrometer_Quick_installation_guide_V2012-02_EN.pdf
- Tensiometer_Irrometer_Recommendations_sensor_interpretations_V2013-03_EN.pdf
- Tensiometer_Irrometer_Irrigation_design-Manual_V2006-01-20_EN.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 2 semaines
In case of backorder::
Usually kept in stock, will be available soon

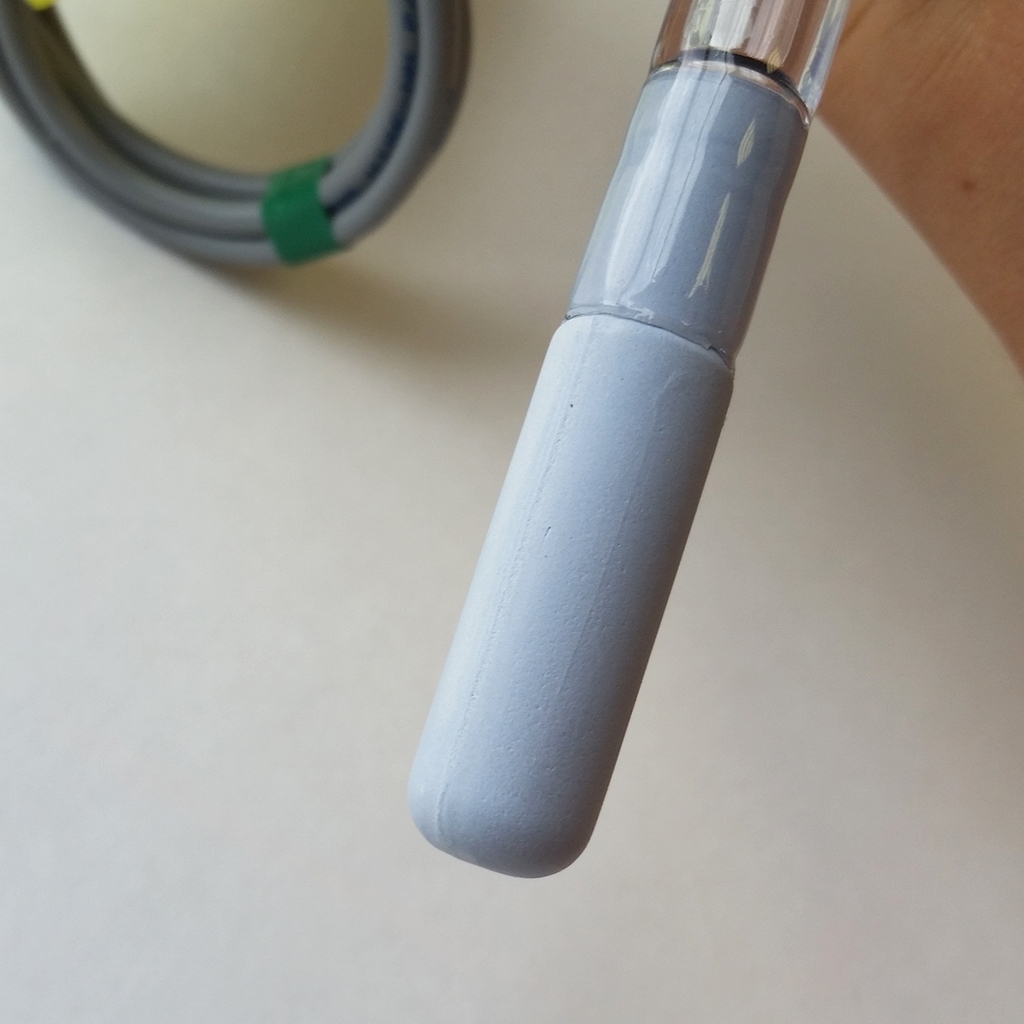

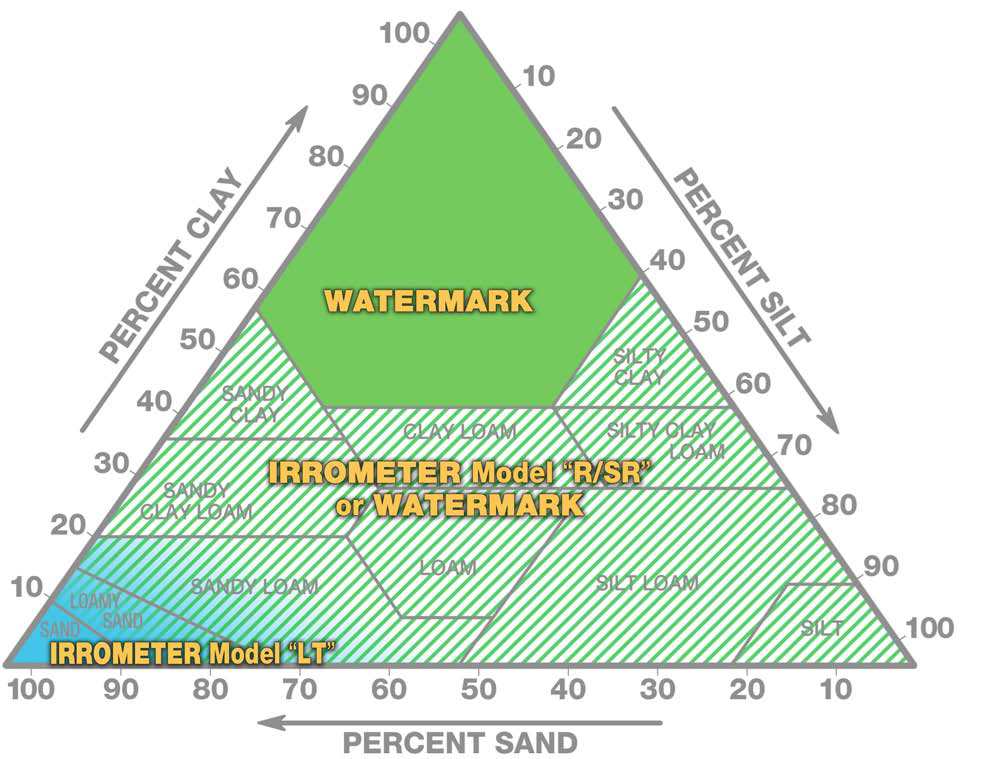

The model "MLT" (miniature low tension) is designed, as is the "LT" model for situations where voltages above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed. Includes a replaceable Quick-Flo (blue) but smaller in size than the "LT" tip.
The model "MLT" tensiometer is ideal for very coarse soils and potting substrates. Its size makes it a good choice for taking reading in small pots.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | MLT (miniature low tension) + RSU-V (Voltage) block 0-94 cb (kPa) |

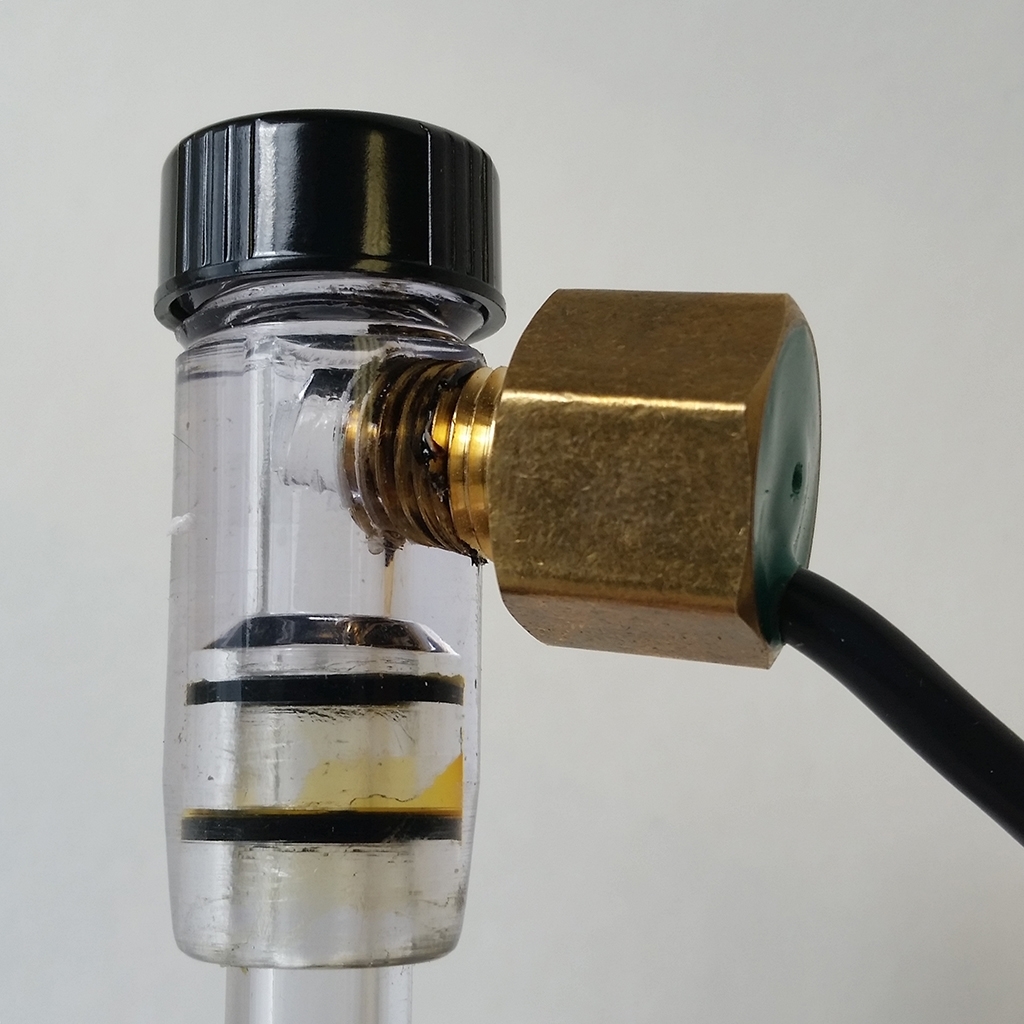

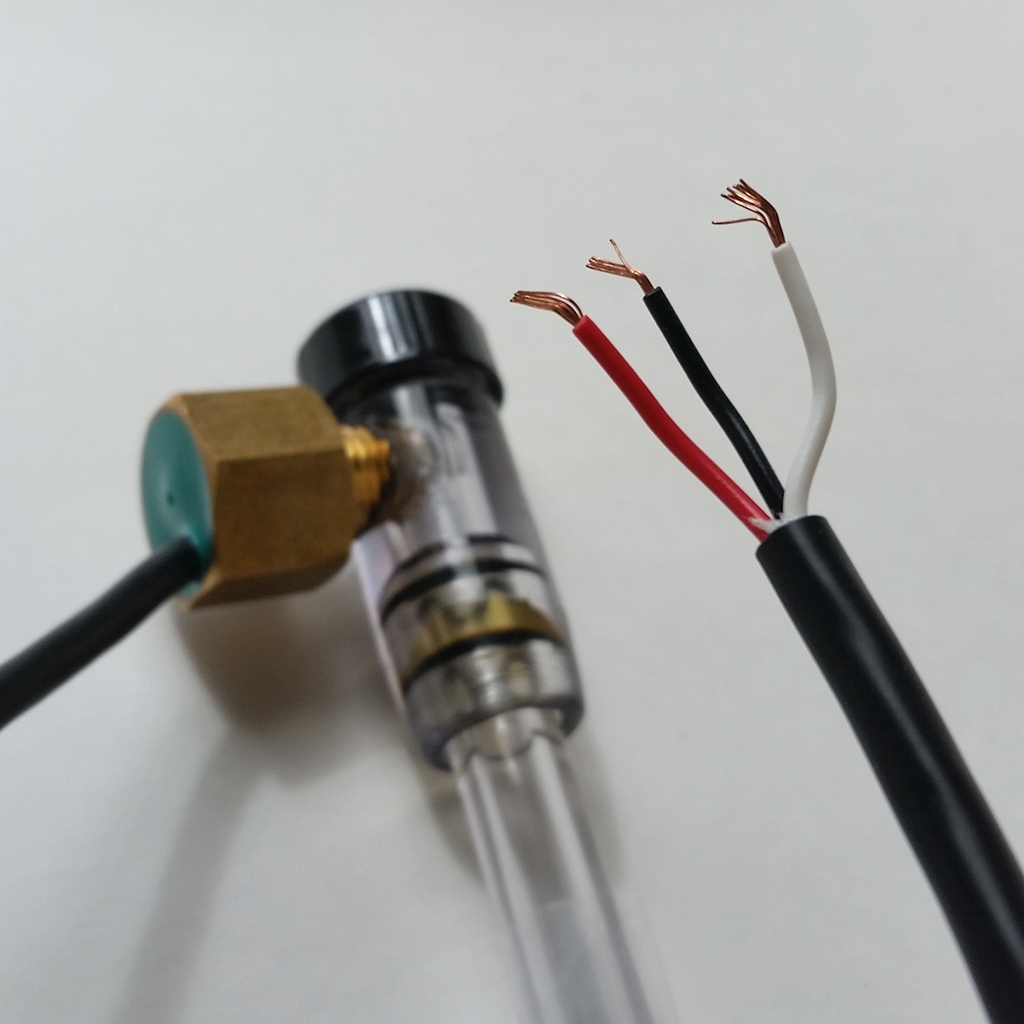

| Include | Tensiometer and RSU block with wire 1/8'' NPT x about 2.5 '' long |
| Height from the bottom of the tube to the hole for the RSU block | 6'' |
| Total height | 7'' |
| Tensiometer tube diameter | 0.5" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
The model "MLT" (miniature low tension) is designed, as is the "LT" model for situations where voltages above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed. Includes a replaceable Quick-Flo (blue) but smaller in size than the "LT" tip.
The model "MLT" tensiometer is ideal for very coarse soils and potting substrates. Its size makes it a good choice for taking reading in small pots.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | MLT (miniature low tension) + RSU-V (Voltage) block 0-94 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/8'' NPT x about 2.5 '' long |
| Height from the bottom of the tube to the hole for the RSU block | 6'' |
| Total height | 7'' |
| Tensiometer tube diameter | 0.5" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
| Control | By computer |
| Length | 6" |
| Model | MLT |
| Inventory stocked | |
| Sensor Type | Soil moisture |
| Block type | RSU-Voltage 0-94 kPa |
