12" SR tensiometer + RSU-Current 0-100 kPa, Ø 0.875" (porous ceramic)
160-110-072900
Thank you for information, we will get back to you asap.
Failure in product call for price.
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-110-072900

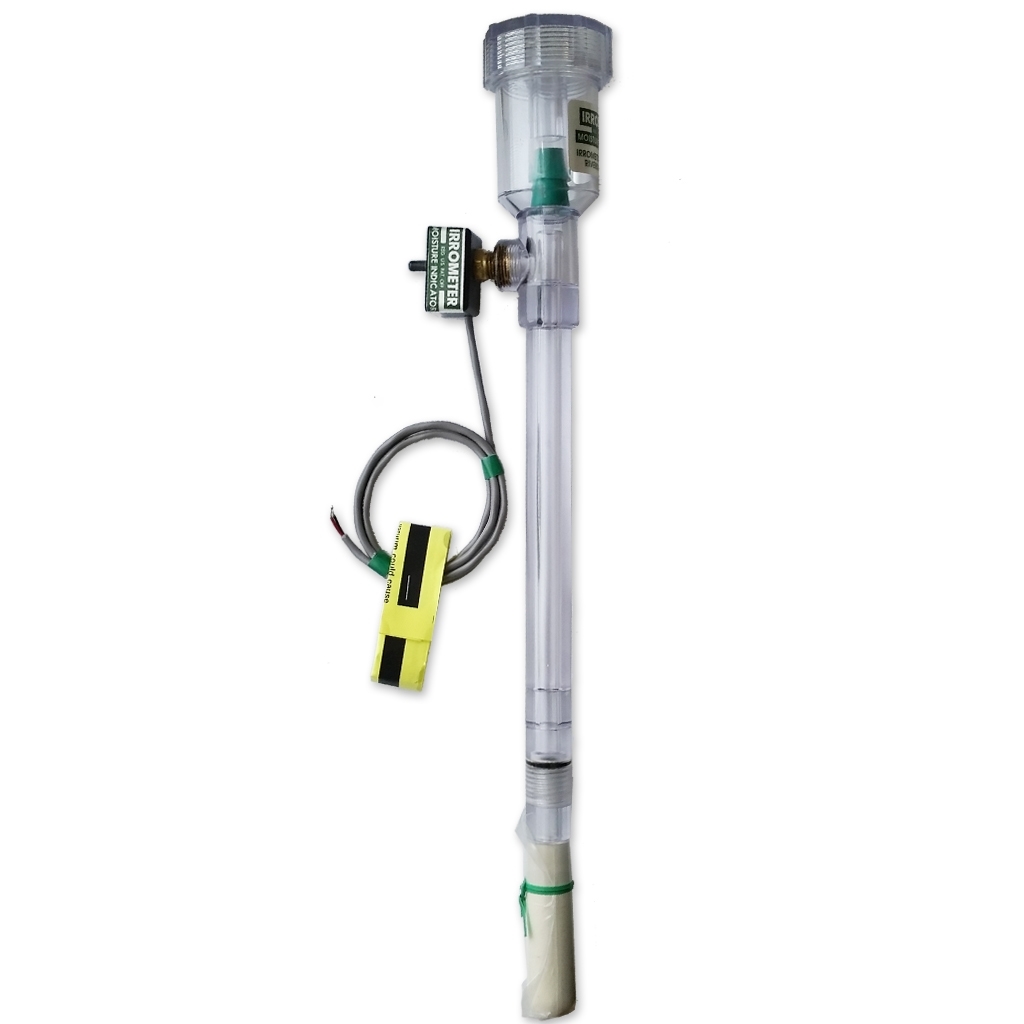

"SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 93 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | SR (Standard with replaceable ceramic tip) + RSU-C block 0-93 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/8'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 12" |
| Total height | 18" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-93 kPa |
| Supply | 12–24 VDC |
| Output (current) | 4-20mA |
| Calibration | 4-20mA = 0-93 kPa (0.172 mA per kPa) |
| Control | By computer |
| Length | 12" |
| Model | SR |
| Order-driven inventory | |
| Sensor Type | Soil moisture |
| Block type | RSU-Current 0-93 kPa |
Submit a Ticket
"SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 93 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | SR (Standard with replaceable ceramic tip) + RSU-C block 0-93 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/8'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 12" |
| Total height | 18" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-93 kPa |
| Supply | 12–24 VDC |
| Output (current) | 4-20mA |
| Calibration | 4-20mA = 0-93 kPa (0.172 mA per kPa) |
