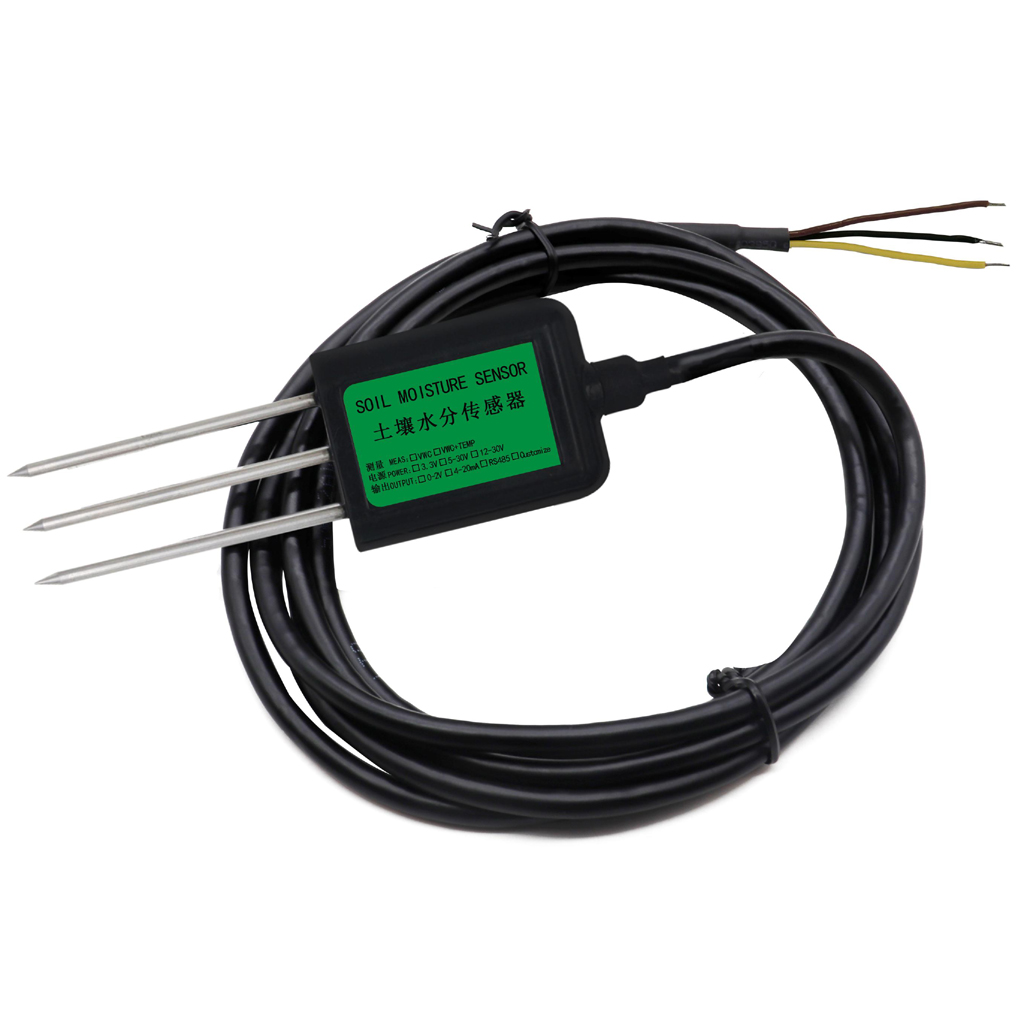

4-20mA/0-5V/0-10V/R5485 Stainless Steel Soil Moisture TDR Probe

160-110-081050

https://ghlinc.odoo.com/web/image/product.template/11519/image_1920?unique=07ece0f

179.05 $ CAD 179.05 CAD 179.05 $ CAD

179.05 $ CAD

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT

    This soil moisture TDR probe is suitable for soil moisture monitoring, scientific experiments, water-savingirrigation,  greenhouses, grasslandpastures, soil rapid measurement, plantcultivation, greenhouse control, precision agriculture, etc., as well as the measurement of water conservancy, meteorology and various particulate water content.

    DC power supply (default)
    DC 10-30V
    Maximum power consumptionCurrent output0.4W (12V DC)

    Voltage output0.3W (12V DC)
    Operating temperature
    -40℃~+60℃
    Core chip temperature resistance

    85℃
    Soil moisture parameters
    Range0-100%

    Precision±2% in the range of 0-50% ;    ±3% in the range of 50-100%
    Protection level
    IP68
    Probe material
    304 stainless steel
    Sealing material
    Black flame-retardant epoxy resin
    Default cable length
    2 meters
    Dimensions
    45*15*123mm
    Output signal
    Current output = 4~20mA


    Voltage output = 0~5V/0~10V
    Load capacityCurrent output≤ 600Ω

    Voltage outputOutput resistance ≤ 250Ω



    This soil moisture TDR probe is suitable for soil moisture monitoring, scientific experiments, water-savingirrigation,  greenhouses, grasslandpastures, soil rapid measurement, plantcultivation, greenhouse control, precision agriculture, etc., as well as the measurement of water conservancy, meteorology and various particulate water content.

    DC power supply (default)
    DC 10-30V
    Maximum power consumptionCurrent output0.4W (12V DC)

    Voltage output0.3W (12V DC)
    Operating temperature
    -40℃~+60℃
    Core chip temperature resistance

    85℃
    Soil moisture parameters
    Range0-100%

    Precision±2% in the range of 0-50% ;    ±3% in the range of 50-100%
    Protection level
    IP68
    Probe material
    304 stainless steel
    Sealing material
    Black flame-retardant epoxy resin
    Default cable length
    2 meters
    Dimensions
    45*15*123mm
    Output signal
    Current output = 4~20mA


    Voltage output = 0~5V/0~10V
    Load capacityCurrent output≤ 600Ω

    Voltage outputOutput resistance ≤ 250Ω
