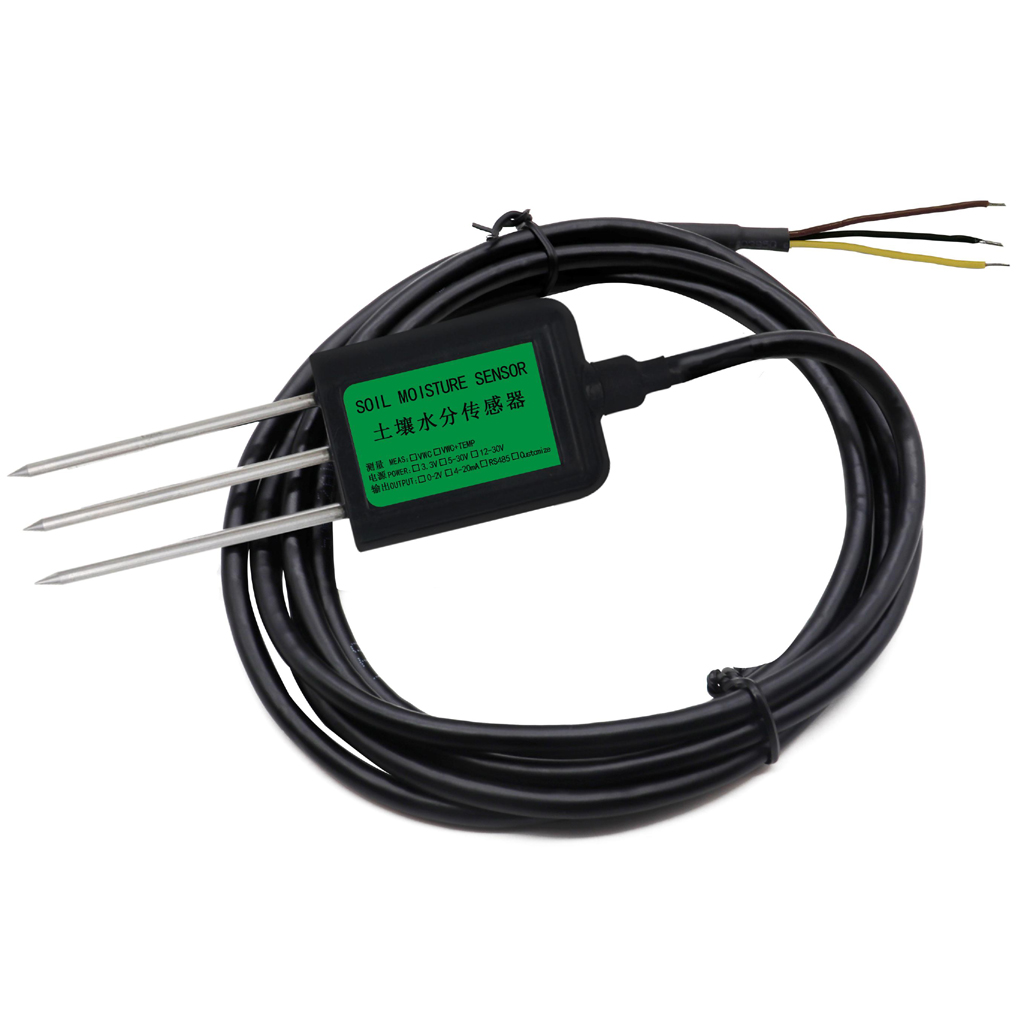

4-20mA/0-5V/0-10V/R5485 Stainless Steel Soil Moisture TDR Probe
160-110-081050
Availability:
backordered
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Only replenished IF YOU ORDER IT
This soil moisture TDR probe is suitable for soil moisture monitoring, scientific experiments, water-savingirrigation, greenhouses, grasslandpastures, soil rapid measurement, plantcultivation, greenhouse control, precision agriculture, etc., as well as the measurement of water conservancy, meteorology and various particulate water content.
| DC power supply (default) | DC 10-30V | |
| Maximum power consumption | Current output | 0.4W (12V DC) |
| Voltage output | 0.3W (12V DC) | |
| Operating temperature | -40℃~+60℃ | |
| Core chip temperature resistance | 85℃ | |
| Soil moisture parameters | Range | 0-100% |
| Precision | ±2% in the range of 0-50% ; ±3% in the range of 50-100% | |
| Protection level | IP68 | |
| Probe material | 304 stainless steel | |
| Sealing material | Black flame-retardant epoxy resin | |
| Default cable length | 2 meters | |
| Dimensions | 45*15*123mm | |
| Output signal | Current output = 4~20mA | |
| Voltage output = 0~5V/0~10V | ||
| Load capacity | Current output | ≤ 600Ω |
| Voltage output | Output resistance ≤ 250Ω |
This soil moisture TDR probe is suitable for soil moisture monitoring, scientific experiments, water-savingirrigation, greenhouses, grasslandpastures, soil rapid measurement, plantcultivation, greenhouse control, precision agriculture, etc., as well as the measurement of water conservancy, meteorology and various particulate water content.
| DC power supply (default) | DC 10-30V | |
| Maximum power consumption | Current output | 0.4W (12V DC) |
| Voltage output | 0.3W (12V DC) | |
| Operating temperature | -40℃~+60℃ | |
| Core chip temperature resistance | 85℃ | |
| Soil moisture parameters | Range | 0-100% |
| Precision | ±2% in the range of 0-50% ; ±3% in the range of 50-100% | |
| Protection level | IP68 | |
| Probe material | 304 stainless steel | |
| Sealing material | Black flame-retardant epoxy resin | |
| Default cable length | 2 meters | |
| Dimensions | 45*15*123mm | |
| Output signal | Current output = 4~20mA | |
| Voltage output = 0~5V/0~10V | ||
| Load capacity | Current output | ≤ 600Ω |
| Voltage output | Output resistance ≤ 250Ω |
