Galcon controller, 9 stations AC-9S 8059S

160-120-032772

https://ghlinc.odoo.com/web/image/product.template/11538/image_1920?unique=a08482b

328.79 $ CAD 328.79 CAD 328.79 $ CAD

328.79 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT

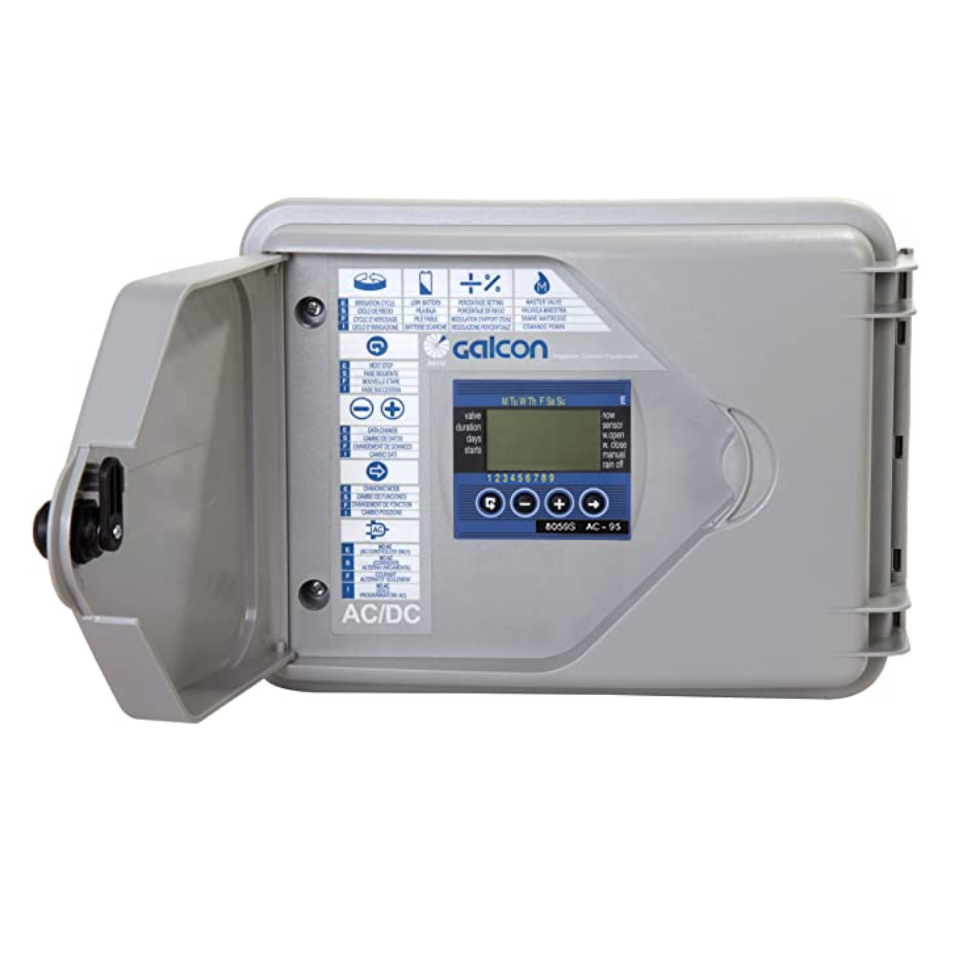

    The Galcon AC-9S 8059S is an irrigation and propagation controller designed to operate 9 irrigation control valve + master valve/pump start.

    • In addition to outstanding durability, the 8000S AC features a large easy-to-program LCD screen and four buttons for programming.
    • This controller offers the ultimate flexibility in scheduling by offering independent programming of each valve and the ability to operate two valves simultaneously.
    • Programming can be set by day of the week (daily/weekly) with irrigation duration as short as 1 minute to as long as 12 hours and up to 4 start times per valve may be used. Or, in cyclical mode, irrigation duration as short as 1 second to as long as 12 hours with a cycle as short as every 1 minute to as long as every 30 days.
    • In addition, the programmable watering window will limit watering to desired hours of operation.
    • The available sensor input can be used with a rain sensor, soil moisture sensor, etc. to conserve water. The sensor input is assigned to individual valves providing you with the flexibility of preventing irrigation in areas that are exposed to rain (lawn) and allowing irrigation to areas that are not exposed to rain (covered patio).
    • Monthly water budgeting can be used to adjust irrigation from 10% - 190%. Rain Delay of up to 30 days and auto re-start.
    • Automatic, semi-automatic and manual mode for each valve or all of the vales simultaneously while automatic short circuit detection isolates the shorted valve, provides a visible “alarm” on the LCD and continues irrigation for the rest of the valves.



    Model
    9 stations - AC-9S 8059S in outdoor casing model six station wall mount irrigation/misting/propagation controller
    Output
    24 VAC 1.14 Amp
    Power supply
    110VAC @ 60 Hz
    Battery (backup)
    9V
    Package dimension
    23cm x 30cm x 12.5cm



    The Galcon AC-9S 8059S is an irrigation and propagation controller designed to operate 9 irrigation control valve + master valve/pump start.

    • In addition to outstanding durability, the 8000S AC features a large easy-to-program LCD screen and four buttons for programming.
    • This controller offers the ultimate flexibility in scheduling by offering independent programming of each valve and the ability to operate two valves simultaneously.
    • Programming can be set by day of the week (daily/weekly) with irrigation duration as short as 1 minute to as long as 12 hours and up to 4 start times per valve may be used. Or, in cyclical mode, irrigation duration as short as 1 second to as long as 12 hours with a cycle as short as every 1 minute to as long as every 30 days.
    • In addition, the programmable watering window will limit watering to desired hours of operation.
    • The available sensor input can be used with a rain sensor, soil moisture sensor, etc. to conserve water. The sensor input is assigned to individual valves providing you with the flexibility of preventing irrigation in areas that are exposed to rain (lawn) and allowing irrigation to areas that are not exposed to rain (covered patio).
    • Monthly water budgeting can be used to adjust irrigation from 10% - 190%. Rain Delay of up to 30 days and auto re-start.
    • Automatic, semi-automatic and manual mode for each valve or all of the vales simultaneously while automatic short circuit detection isolates the shorted valve, provides a visible “alarm” on the LCD and continues irrigation for the rest of the valves.



    Model
    9 stations - AC-9S 8059S in outdoor casing model six station wall mount irrigation/misting/propagation controller
    Output
    24 VAC 1.14 Amp
    Power supply
    110VAC @ 60 Hz
    Battery (backup)
    9V
    Package dimension
    23cm x 30cm x 12.5cm

    Minimum watering time 1 second (for misting)
