RW243-25\230\1\OC\P\C\86 greenhouse vent winder Ridder motor

160-120-091100

Call For Price https://ghlinc.odoo.com/web/image/product.template/4106/image_1920?unique=29bf889

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: 2-6 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT

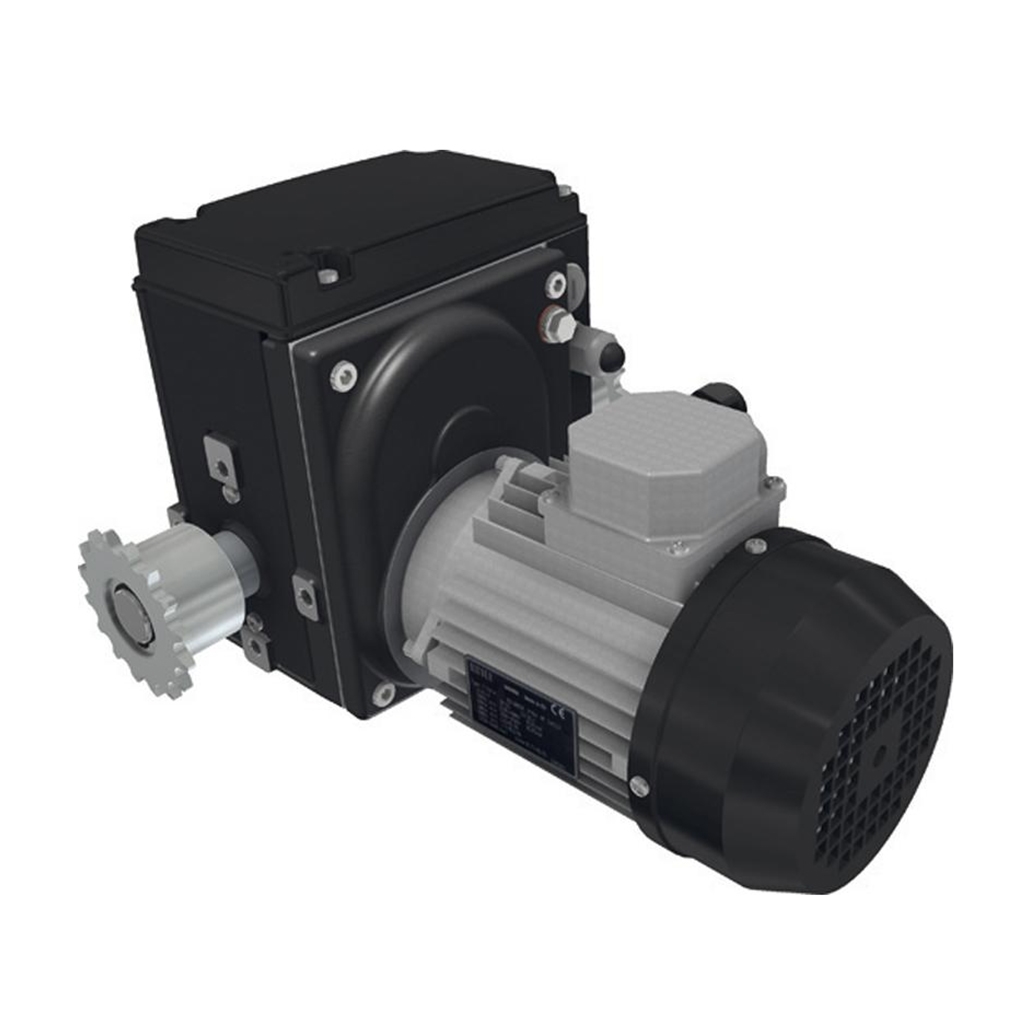

    * The motor color and actual shape may differ from that of the image.



    The RW240 motor gearboxes, suitable for LogicLink400 or LogicLink600 control units, are maintenance-free, compact drive units for operating ventilation, screen and lifting systems in greenhouses and livestock houses. The motor gearboxes are equipped with PTC a resistor in the electric motor, which serves as a thermal safeguard for the drive unit used with a LogicLink control unit.

    All RW240 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.

    The RW240 motor gearboxes feature a patented integrated linear limit switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit switch system equates to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller. This position feedback can also be achieved using an installation set with a potentiometer.

    The RW240 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.



    Model
    RW45-2-09\115\1\60\P\CU\97
    Motor
    1-phase, 230V @ 50/60 Hz (EM type E) 0.25kW
    Electric supply
    230 Volts AC
    Torque
    240 Nm (@ 50/60 Hz)
    RPM
    3.0 turns/min (@ 50 Hz) / 3.6 turns/min (@ 60 Hz)
    Limit Range (No. of turns)
    86 turns
    Reduction Method
    Self-braking worm gear transmission
    Weight
    32 kg



    * The motor color and actual shape may differ from that of the image.



    The RW240 motor gearboxes, suitable for LogicLink400 or LogicLink600 control units, are maintenance-free, compact drive units for operating ventilation, screen and lifting systems in greenhouses and livestock houses. The motor gearboxes are equipped with PTC a resistor in the electric motor, which serves as a thermal safeguard for the drive unit used with a LogicLink control unit.

    All RW240 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.

    The RW240 motor gearboxes feature a patented integrated linear limit switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit switch system equates to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller. This position feedback can also be achieved using an installation set with a potentiometer.

    The RW240 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.



    Model
    RW45-2-09\115\1\60\P\CU\97
    Motor
    1-phase, 230V @ 50/60 Hz (EM type E) 0.25kW
    Electric supply
    230 Volts AC
    Torque
    240 Nm (@ 50/60 Hz)
    RPM
    3.0 turns/min (@ 50 Hz) / 3.6 turns/min (@ 60 Hz)
    Limit Range (No. of turns)
    86 turns
    Reduction Method
    Self-braking worm gear transmission
    Weight
    32 kg

    Order-driven inventory
