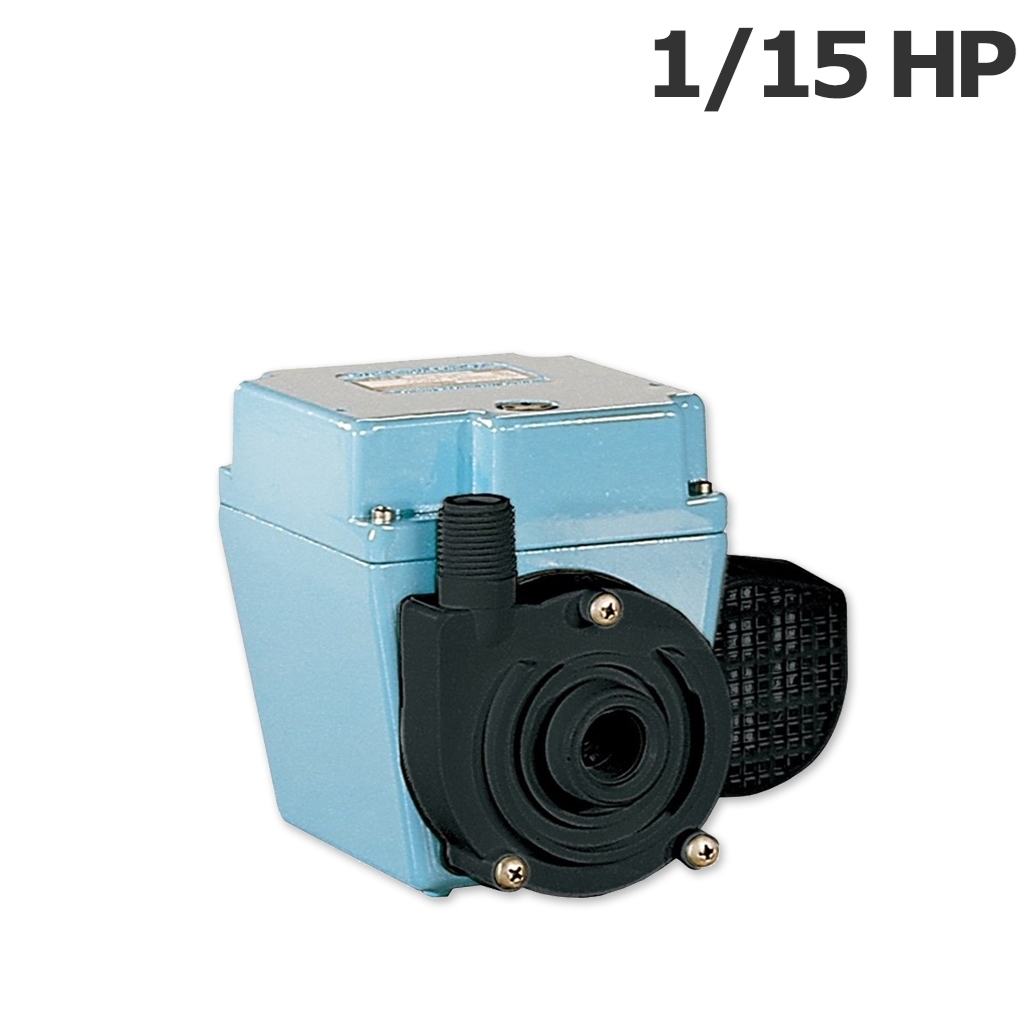

LittleGiant 3E-34N 1/15HP 115V 3/4"x1/2" submersible or in-line pump
160-140-011000
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-140-011000
1/15HP 115V submersible pump. Can be used in a submerged or in-line manner such as for flood tables in greenhouse cultivation.
- Submersible, for water transfer or circulation
- For use either submersed or out of water if fluid is gravity fed to pump intake
- Oil-filled motor housing for extended life and rapid heat dissipation
- Cast aluminum housing with protective epoxy coating
|
Motor |
1/15HP 115V 60Hz 2.5A Oil-filled motor |
| Maximum capacity | |
|
Maximum vertical elevation |
6.2 meters (approx. 20.3') |
|
Suction capacity |
@? PSI: 670 gph/1' 650 gph/3' 575 gph/5' 460 gph/10' |
|
Maximum pressure |
8.8 PSI |
| Connection diameter |
Suction: 3/4" FPT (suction grid) Discharge: 1/2" MPT |
| Type of use |
|
| Power cable |
10' |
| Weight |
4.83 lbs (2.19kg) |
| Power | 1/15 HP |
| Discharge diameter | 1/2" |
| Voltage | 115 V |
| Submersible | Yes |
| Water source | Above ground tank at the same level as the pump |
| Suction diameter | 3/4" |
| Outer tube diameter (O.D.) | 3/4 " |
| Order-driven inventory | |
| Water source | Underground tank (sump) |
| Typical use | Innundant table |
| Usage | Upcoming info |
| Suction diameter | Suction grid |
| Water source | Above-ground tank at the same level as the pump, Underground tank (sump) |
| Self-priming | Upcoming info |
