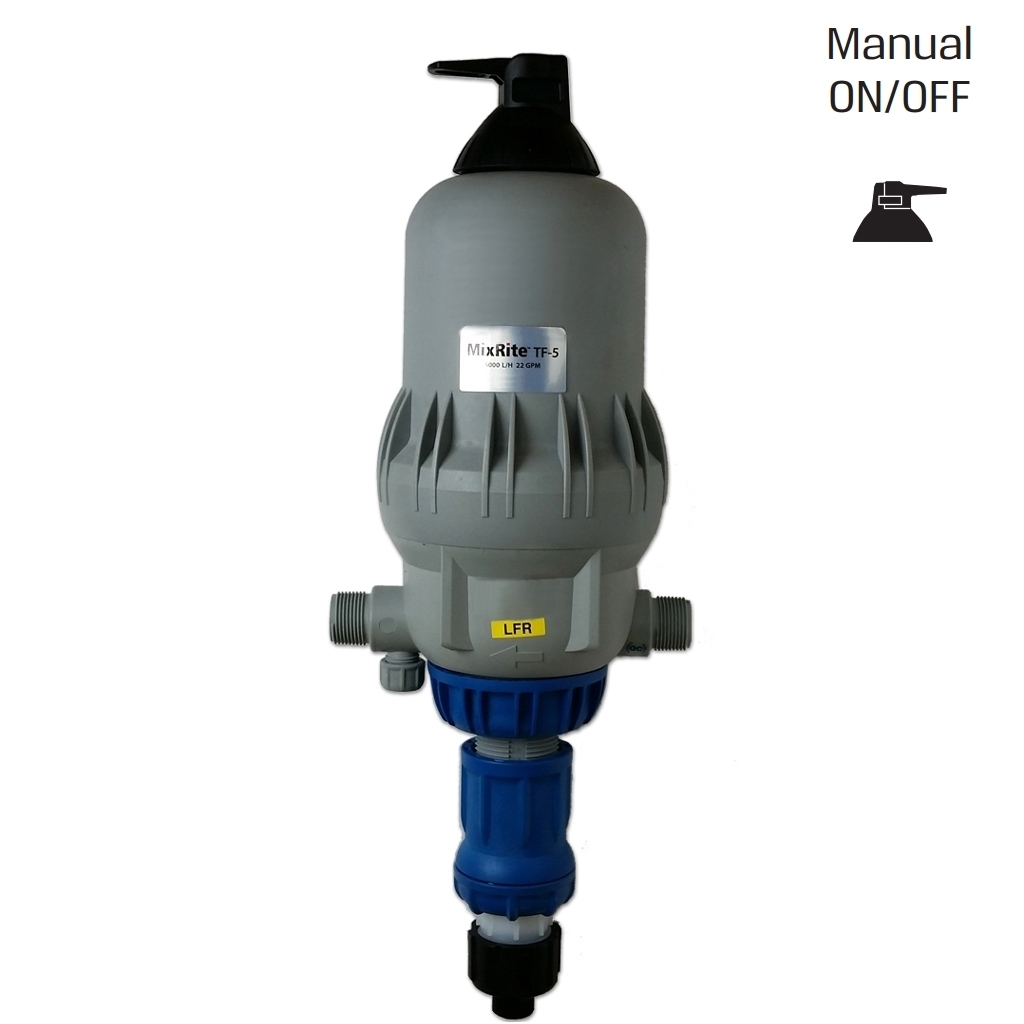

MixRite TF-5 1" 0.2-2% 0.88-22gpm ON/OFF proportional injector
160-140-031100
- Tefen_MixRite-TF5_GHL-Manual_V2014-01_EN_ES.pdf
- Tefen_MixRite_GHL-Catalogue_V2014-02-02_EN.pdf
- Tefen_MixRite-Catalogue_V2010-01-27_FR.pdf
- Tefen_MixRite_GHL-Chemical_resistances_V2015-03-04_EN.pdf
- GHL_Tefen_MixRite-Procedure_graissage_et_changement_joints_V2015-03-17_EN.pdf
- GHL_Tefen_MixRite-Test_calibration_rapide_V2015-03-17_FR.pdf
- GHL_Tefen_MixRite-Procedure_rincage_et_entreposage_V2015-03-17_FR.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-5 (5 m3/h) - 0.2%-2% - Manual On/Off |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF5 2% IL) and instruction manual. |
| Flow range "to operate properly" | 0.88 - 22 gpm (200-5000 L/h) |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 14.7 - 120 PSI (1-8 bar) |
| Air release system | Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size | 1" MPT x 1" MPT |
| Material |
NBR seals SST |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-5 (5 m3/h) - 0.2%-2% - Manual On/Off |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF5 2% IL) and instruction manual. |
| Flow range "to operate properly" | 0.88 - 22 gpm (200-5000 L/h) |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 14.7 - 120 PSI (1-8 bar) |
| Air release system | Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size | 1" MPT x 1" MPT |
| Material |
NBR seals SST |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
| Air release system | Manual ON/OFF |
| Inventory stocked | |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 14.7 - 120 PSI (1-8 bar) |
| Outer tube diameter (O.D.) | 1 " |
| Water flow | 0.88 - 22 gpm (200-5000 L/h) |
| Dosing flow | 0.4 - 100 L/h (0.11-26.42 gph) |
| Connection type | Male pipe thread (MPT) |
| Connection type | MPT x MPT |
