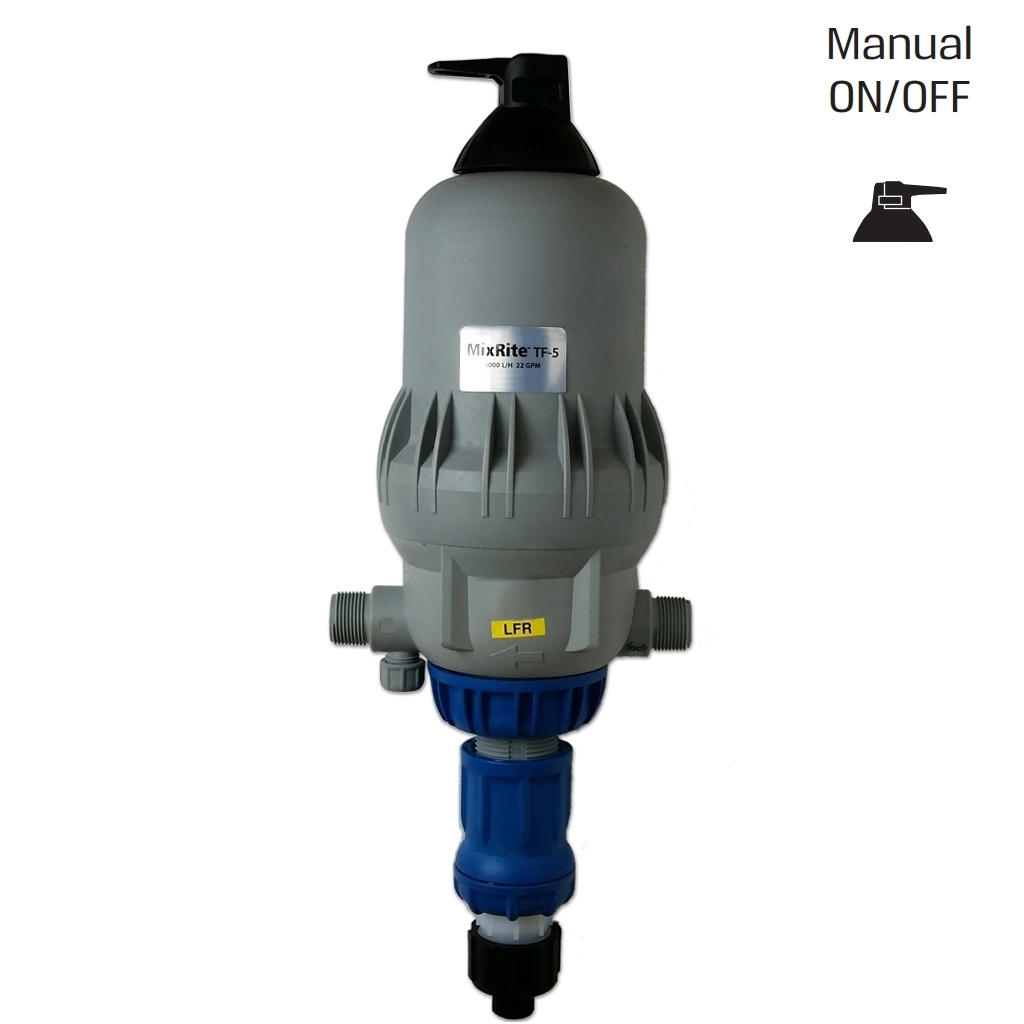

MixRite TF-5 1" 0.2-2% 0.88-22gpm ON/OFF proportional injector

160-140-031100

https://boutiquepro.ghlinc.com/web/image/product.template/4346/image_1920?unique=145afa6

950.63 $ CAD 950.63 CAD 950.63 $ CAD

950.63 $ CAD

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ TF-5 (5 m3/h) - 0.2%-2% - Manual On/Off
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF5 2% IL) and instruction manual.
    Flow range "to operate properly" 0.88 - 22 gpm (200-5000 L/h)
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Working pressure 14.7 - 120 PSI (1-8 bar)
    Air release system Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process)
    Inlet x Outlet size 1" MPT x 1" MPT
    Material

    NBR seals

    SST

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.




    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ TF-5 (5 m3/h) - 0.2%-2% - Manual On/Off
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF5 2% IL) and instruction manual.
    Flow range "to operate properly" 0.88 - 22 gpm (200-5000 L/h)
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Working pressure 14.7 - 120 PSI (1-8 bar)
    Air release system Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process)
    Inlet x Outlet size 1" MPT x 1" MPT
    Material

    NBR seals

    SST

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.

    Air release system Manual ON/OFF
    Inventory stocked
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Working pressure 14.7 - 120 PSI (1-8 bar)
    Outer tube diameter (O.D.) 1 "
    Water flow 0.88 - 22 gpm (200-5000 L/h)
    Dosing flow 0.4 - 100 L/h (0.11-26.42 gph)
    Connection type Male pipe thread (MPT)
    Connection type MPT x MPT
