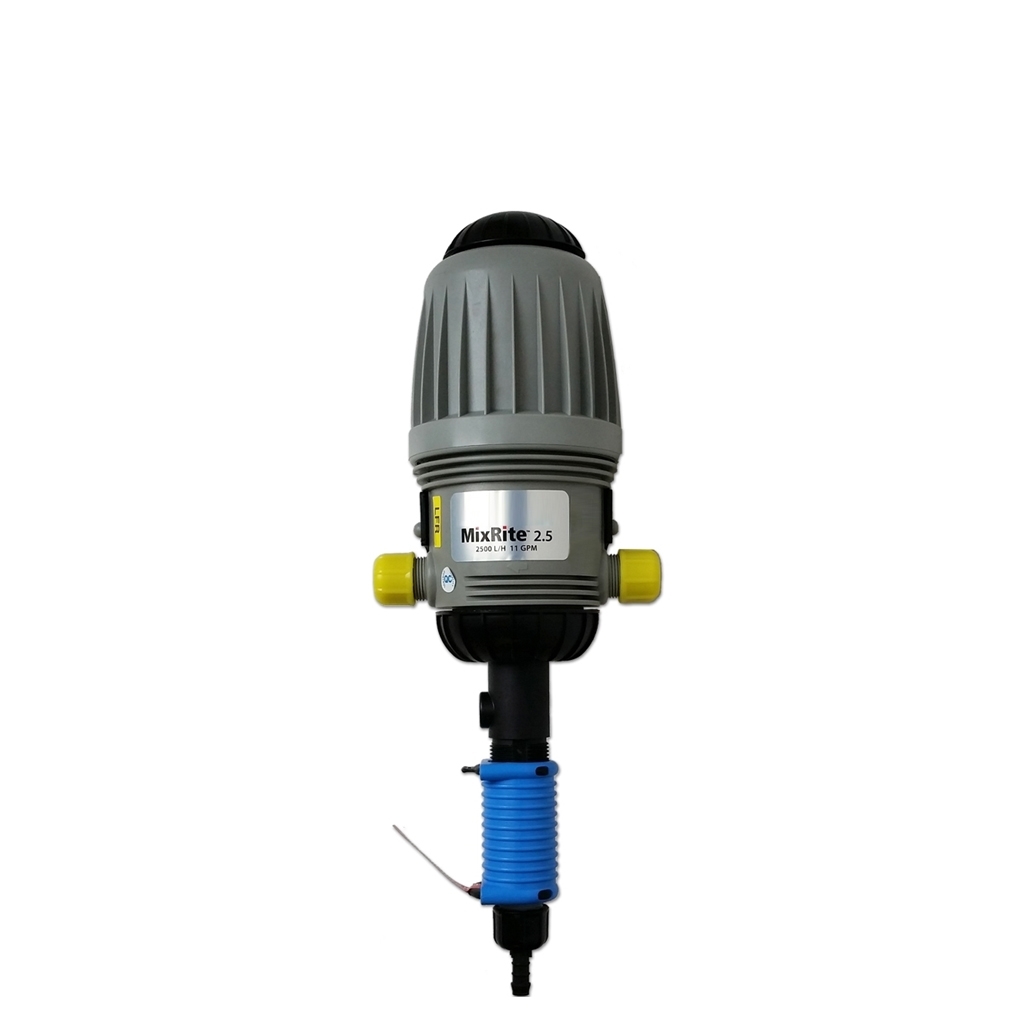

MixRite 2.5 3/4" 0.3-2% 0.088-11gpm proportional injector

160-140-031400

https://boutiquepro.ghlinc.com/web/image/product.template/4349/image_1920?unique=47a0bb9

651.31 $ CAD 651.3100000000001 CAD 651.31 $ CAD

651.31 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% CW - Air release
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit 2%Dual 36000000204) and instruction manual.
    Flow range "to operate properly"
    0.088 - 11 gpm (20-2500 L/h)
    Dosage rate
    0.3 - 2% (1:333 - 1:50)
    Working pressure
    2.9 - 120 PSI (0.2-8 bar)
    Air release system
    "Air release" (Allows a release of the blocked air in the water lines)
    Inlet x Outlet size
    3/4" MPT x 3/4" MPT
    Material

    AFLAS seals

    SST, Hastelloy

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.




    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% CW - Air release
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit 2%Dual 36000000204) and instruction manual.
    Flow range "to operate properly"
    0.088 - 11 gpm (20-2500 L/h)
    Dosage rate
    0.3 - 2% (1:333 - 1:50)
    Working pressure
    2.9 - 120 PSI (0.2-8 bar)
    Air release system
    "Air release" (Allows a release of the blocked air in the water lines)
    Inlet x Outlet size
    3/4" MPT x 3/4" MPT
    Material

    AFLAS seals

    SST, Hastelloy

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.

    Water flow 0.088 - 11 gpm (20-2500 L/h)
    Dosage rate 0.3 - 2% (1:333 - 1:50)
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Inventory stocked
    Outer tube diameter (O.D.) 3/4 "
    Air release system Air release
    Dosing flow 0.021 - 50 L/h (0.006-13.22 gph)
    Connection type Male pipe thread (MPT)
    Connection type MPT x MPT
