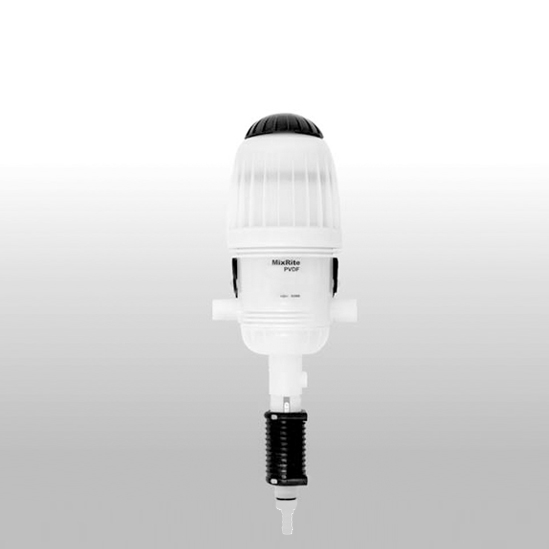

MixRite 2.5 PVDF 3/4" 0.3-2% 0.088-11gpm acid proportional injector
160-140-031500
- Tefen_MixRite_500serie_GHL-Manuel_2012-06-07_FR_EN_ES.pdf
- Tefen_MixRite_GHL-Catalogue_V2014-02-02_EN.pdf
- Tefen_MixRite-Catalogue_V2010-01-27_FR.pdf
- Tefen_MixRite_GHL-Chemical_resistances_V2015-03-04_EN.pdf
- GHL_Tefen_MixRite-Procedure_graissage_et_changement_joints_V2015-03-17_EN.pdf
- GHL_Tefen_MixRite-Test_calibration_rapide_V2015-03-17_FR.pdf
- GHL_Tefen_MixRite-Procedure_rincage_et_entreposage_V2015-03-17_FR.pdf
Availability:
backordered
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Only replenished IF YOU ORDER IT
PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
Model | MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% PVDF - Air release |
Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit) and instruction manual. |
Flow range "to operate properly" | 0.088 - 11 gpm (20-2500 L/h) |
Dosage rate | 0.3 - 2% (1:333 - 1:50) |
Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
Air release system | Air release (Allows an automatic release of the blocked air in the water line) |
Inlet x Outlet size | 3/4" MPT x 3/4" MPT |
Material |
All upper seals made from Viton Extreme |
Typical chemical application |
Sulfuric acid, nitric acid, phosphoric acid, chloric acid, hydrofluoric acid, etc. Fertilizers Etc. |
PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
Model | MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% PVDF - Air release |
Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit) and instruction manual. |
Flow range "to operate properly" | 0.088 - 11 gpm (20-2500 L/h) |
Dosage rate | 0.3 - 2% (1:333 - 1:50) |
Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
Air release system | Air release (Allows an automatic release of the blocked air in the water line) |
Inlet x Outlet size | 3/4" MPT x 3/4" MPT |
Material |
All upper seals made from Viton Extreme |
Typical chemical application |
Sulfuric acid, nitric acid, phosphoric acid, chloric acid, hydrofluoric acid, etc. Fertilizers Etc. |
Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
Water flow | 0.088 - 11 gpm (20-2500 L/h) |
Dosage rate | 0.3 - 2% (1:333 - 1:50) |
Outer tube diameter (O.D.) | 3/4 " |
Air release system | Air release |
Order-driven inventory | |
Dosing flow | 0.021 - 50 L/h (0.006-13.22 gph) |
Connection type | Male pipe thread (MPT) |
Connection type | MPT x MPT |
