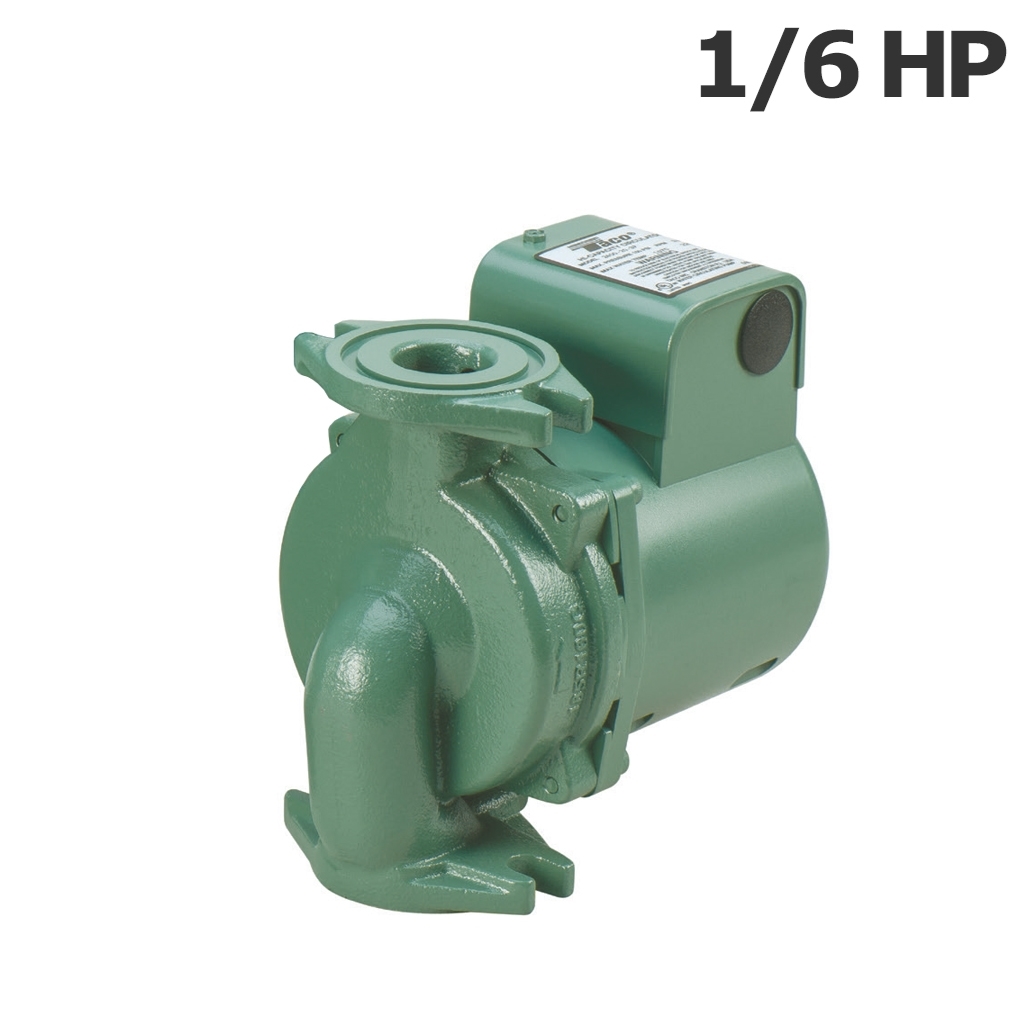

Taco hot water circulation pump 1/6HP 115V, flange 1 1/2"

160-140-041000

Call For Price https://ghlinc.odoo.com/web/image/product.template/4352/image_1920?unique=a03c08f

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    This high capacity cast iron circulation pump is specifically designed for quiet, efficient, reliable operation in a wide range of large residential and commercial hot and cold water systems such as hot water recirculation, hydronic heating , heated floors, high pressure boiler, cold water refrigeration, geotermic heat pumps, etc.

    • Higher efficiency, high starting torque
    • Double "knockout" electric
    • Mechanical carbon / silicon carbide seals for a long service life.



    Motor

    1/6HP 115V 60Hz. Powerful motor with direct coupling and maintenance free. Stainless steel motor shaft and ball bearing sealed and lubricated for life.

    Maximum liquid temperature Up to 107°C (225°F)
    Maximum capacity Up to 20440L/h (approx. 5400gph)

    Maximum vertical elevation

    14 meters (approx. 46')

    Suction capacity



    Maximum pressure

    150 PSI

    Connection diameter

    1 1/2" iron flange (other sizes on request)

    Type of use



    Power cable

    Not included

    Poids Approx. 12 lbs (5.5 kg)



    This high capacity cast iron circulation pump is specifically designed for quiet, efficient, reliable operation in a wide range of large residential and commercial hot and cold water systems such as hot water recirculation, hydronic heating , heated floors, high pressure boiler, cold water refrigeration, geotermic heat pumps, etc.

    • Higher efficiency, high starting torque
    • Double "knockout" electric
    • Mechanical carbon / silicon carbide seals for a long service life.



    Motor

    1/6HP 115V 60Hz. Powerful motor with direct coupling and maintenance free. Stainless steel motor shaft and ball bearing sealed and lubricated for life.

    Maximum liquid temperature Up to 107°C (225°F)
    Maximum capacity Up to 20440L/h (approx. 5400gph)

    Maximum vertical elevation

    14 meters (approx. 46')

    Suction capacity



    Maximum pressure

    150 PSI

    Connection diameter

    1 1/2" iron flange (other sizes on request)

    Type of use



    Power cable

    Not included

    Poids Approx. 12 lbs (5.5 kg)

    Power 1/6 HP
    Voltage 115 V
    Submersible No
    Order-driven inventory
    Typical use Hot water transport
    Typical use Hot water capillary mat
    Suction diameter Flange
    Discharge diameter Flange
    Usage Upcoming info
    Typical use Hot water transport, Hot water capillary mat
    Water source Upcoming info
    Self-priming Upcoming info
