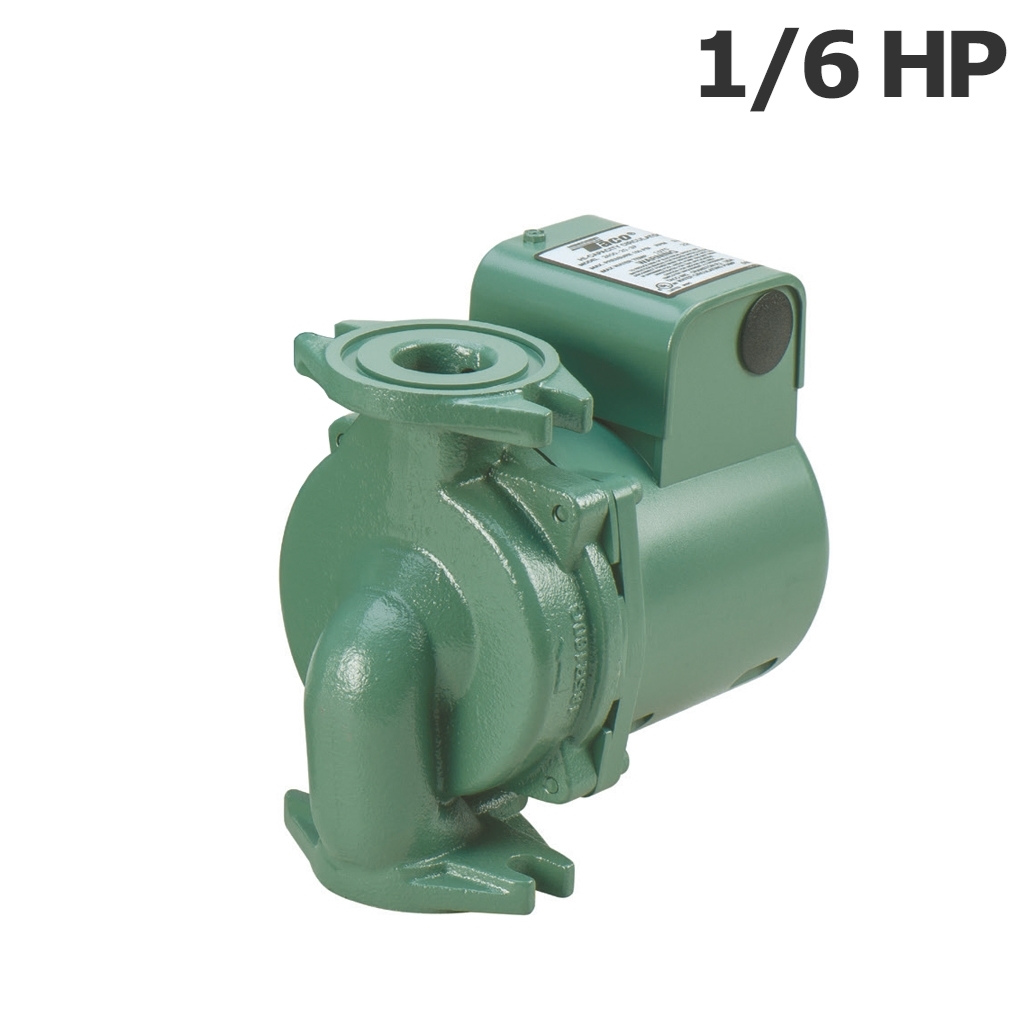

Taco hot water circulation pump 1/6HP 115V, flange 1 1/2"
160-140-041000
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-140-041000
This high capacity cast iron circulation pump is specifically designed for quiet, efficient, reliable operation in a wide range of large residential and commercial hot and cold water systems such as hot water recirculation, hydronic heating , heated floors, high pressure boiler, cold water refrigeration, geotermic heat pumps, etc.
- Higher efficiency, high starting torque
- Double "knockout" electric
- Mechanical carbon / silicon carbide seals for a long service life.
|
Motor |
1/6HP 115V 60Hz. Powerful motor with direct coupling and maintenance free. Stainless steel motor shaft and ball bearing sealed and lubricated for life. |
| Maximum liquid temperature | Up to 107°C (225°F) |
| Maximum capacity | Up to 20440L/h (approx. 5400gph) |
|
Maximum vertical elevation |
14 meters (approx. 46') |
|
Suction capacity |
|
|
Maximum pressure |
150 PSI |
| Connection diameter |
1 1/2" iron flange (other sizes on request) |
| Type of use |
|
| Power cable |
Not included |
| Poids | Approx. 12 lbs (5.5 kg) |
| Power | 1/6 HP |
| Voltage | 115 V |
| Submersible | No |
| Order-driven inventory | |
| Typical use | Hot water transport |
| Typical use | Hot water capillary mat |
| Suction diameter | Flange |
| Discharge diameter | Flange |
| Usage | Upcoming info |
| Typical use | Hot water transport, Hot water capillary mat |
| Water source | Upcoming info |
| Self-priming | Upcoming info |
