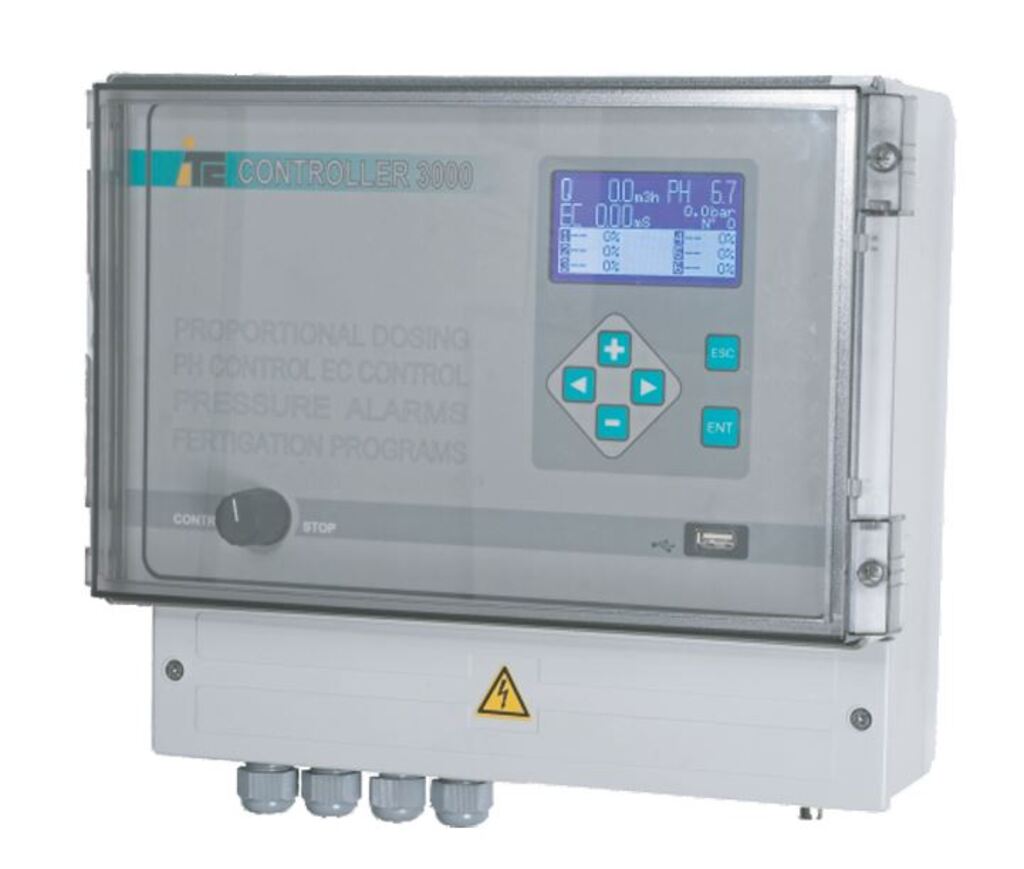

ITC Controller 3000-6/12

Controller 3000 is a Fertigation Controller for the dosage of 6 different Products and on-line Control of the most important Parameters to adjust for each area in an Irrigation System: Flow, pH, Conductivity and Pressure.

Inputs

Flow meter: Reading of the instantaneous Water Flow in the System
Electrical Conductivity (EC): Reading of the Water Conductivity in the System
pH: Reading of the Water pH in the System
Pressure: Reading of the Pressure in the System
Inputs of Remote Control Channels A/B
Fertigation Programme Inputs (Controller 3000-6/12): Information Inputs about the enabled Irrigation

Area: By the signal of a simple Irrigation Programmer, Controller 3000 identifies the enabled Irrigation Area and will carry out the previously programmed Treatment for this Area

Outputs

6 analogue Outputs for Metering Pumps
Independent Alarms Outputs for Flow, EC, pH and Pressure
USB1 Port for a USB Memory Device (pen drive): it allows storing Records, Configuration and Programming of the Controller 3000, and to load a new Configuration and Programming previously executed by the Fertigation SCADA installed in the PC
USB2 Port for the connection to PC. It allows connecting the Controller to a computer with the Organic Irrigation SCADA installed, so you can visualize in real time the development of the Sensors Readings and Dosing Pumps Adjustment

Fertigation SCADA
PC Software for Data Supervision, Control and Acquisition:

Graphic Visualization in real time of all the variables executed by Controller 3000.
Graphs about the Development of Readings with maximum and minimum Values.
Table with Records exportable to a Spreadsheet.
Incidences List: Date, Time and Alarm type.
Traceability Document for each Irrigation Area: Consumption of Water, Fertilizer, Acids and Additives. Medium, maximum and minimum Values of pH, EC, Flow and Pressure. Alarms during the selected time.
