Berg BENOMIC STAR hydraulic platform 260 (2-scissors)

Call For Price https://ghlinc.odoo.com/web/image/product.template/4526/image_1920?unique=52c92b2

Shipping cost from Europe to Quebec not included.

  • Largeur des rails

This combination does not exist.



Availability: backordered
Shipping time if backordered:: 2-4 semaines
In case of backorder:: Only replenished IF YOU ORDER IT

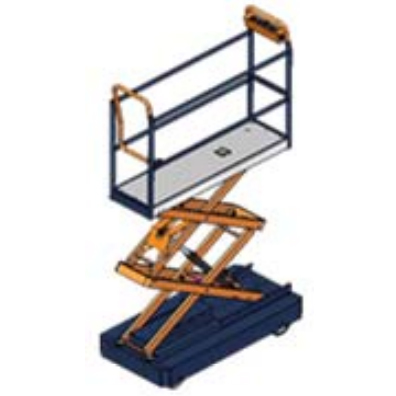

Hydraulic platform with 2 scissors on electric trolley for greenhouse rail in horticultural production.



  • Lateral movement with a single button
  • Adjustable speed from 0 to 60 meters / minute
  • Electronically adjustable driving control for comfortable acceleration and braking
  • Simple control and robust control panel
  • Scissor motion sensor located on chassis
  • Traction batteries, 24V / 110Ah
  • Battery charge level indicator
  • Strong and fast engine of 0.37kW
  • Solid welded steel structure
  • Very stable hydraulic scissor holder
  • Durable powder coating
  • Integrated Level Indicator
  • Complies with CE standards
  • Non-hanging scissors and frames with smooth finish and closed and rounded ends



Technical information and options:



Model

BENOMIC STAR 260

Scissors

2 scissors

Wagon length

150 cm

Platform length

144 cm

Platform width

42 cm

Maximum height

260 cm

Motor capacity

0.37 kW

Maximum load capacity
365 kg
Maximum speed
60 meters/minute
Battery
2 traction batteries, 24V/110Ah
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 56cm to 80cm

Also included
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • Safety guard
Options on request
  • Built-in battery charger 115V or 230V
  • High frequency battery charger
  • Vulkollan drive roller with plastic flanged wheels
  • Toolkit for Benomic Star or Benomic
  • Connection 24V (max 5 Amp)
  • Towing platform for 24V connection (including foot switch)
  • Connection 12V + 24V with switch (max 5 Amp)
  • Etc.

Specifications

Largeur des rails c.t.c. 55cm, pipe 51mm or c.t.c. 42.5cm, pipe 51mm or c.t.c. 60cm, pipe 51mm or other



Hydraulic platform with 2 scissors on electric trolley for greenhouse rail in horticultural production.



  • Lateral movement with a single button
  • Adjustable speed from 0 to 60 meters / minute
  • Electronically adjustable driving control for comfortable acceleration and braking
  • Simple control and robust control panel
  • Scissor motion sensor located on chassis
  • Traction batteries, 24V / 110Ah
  • Battery charge level indicator
  • Strong and fast engine of 0.37kW
  • Solid welded steel structure
  • Very stable hydraulic scissor holder
  • Durable powder coating
  • Integrated Level Indicator
  • Complies with CE standards
  • Non-hanging scissors and frames with smooth finish and closed and rounded ends



Technical information and options:



Model

BENOMIC STAR 260

Scissors

2 scissors

Wagon length

150 cm

Platform length

144 cm

Platform width

42 cm

Maximum height

260 cm

Motor capacity

0.37 kW

Maximum load capacity
365 kg
Maximum speed
60 meters/minute
Battery
2 traction batteries, 24V/110Ah
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 56cm to 80cm

Also included
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • Safety guard
Options on request
  • Built-in battery charger 115V or 230V
  • High frequency battery charger
  • Vulkollan drive roller with plastic flanged wheels
  • Toolkit for Benomic Star or Benomic
  • Connection 24V (max 5 Amp)
  • Towing platform for 24V connection (including foot switch)
  • Connection 12V + 24V with switch (max 5 Amp)
  • Etc.
