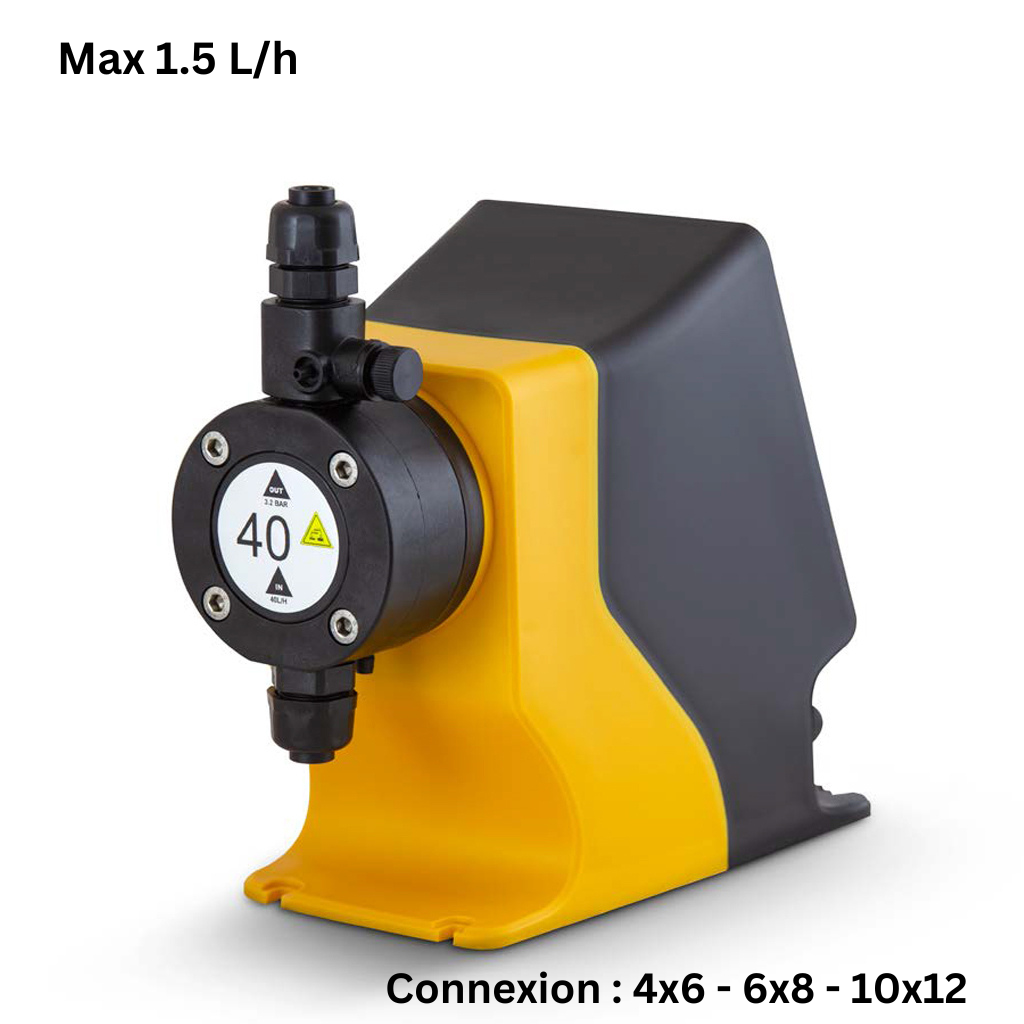

ITC DOSmart AC diaphragm dosing pump 1.5 l/h 16 bar adapter included: 4x6
Availability:
backordered
Shipping time if backordered::
2-4 semaines
In case of backorder::
Only replenished IF YOU ORDER IT
DOSmart AC is a series of dosing pumps with a step motor and advanced control functions to automate precisely and efficiently the dosing of chemicals in liquid state.
This series of pumps is characterized by:
Adjustment range (1:3000)
High precision
High suction capacity even with viscous products.
The flow range covers needs from 1.5 l/h (0.40 gph) at a pressure of up to 16 bar (232 psi).
The choice of the correct head material between PP, PVDF and stainless steel allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.
There is an APP available for DOSmart AC pumps which allows to monitor and control easily the unit remotely. The APP also has the option to receive alarm messages through SMS and email.
Advanced Dosing Functions
(ST) STANDARD
100% Operation | 50% Operation
(SS1) SLOW SUCTION
Slow suction cycle for a reliable dosing for high viscosity fluids
(SS2) SLOW SUCTION AND DISCHARGE
Slow suction cycle for a reliable dosing for high viscosity fluids
| Electrical information | 1 phase 100-250 Vac (50/60Hz) / 24 Vdc |
| Power | 32 W |
| Diaphragm material | PTFE |
| Cylinder material | PP/PVDF/SS |
| Valves (body) material | PP/PVDF/SS |
| Weight | 4,5 kg (10 lb) |
Specifications
| Materials | Cylindre PP│Valve PP│Ball Boro. or Cylindre PVDF│Valve PVDF│Ball Boro. or Cylindre PP│Valve PVDF│Ball Boro. |
DOSmart AC is a series of dosing pumps with a step motor and advanced control functions to automate precisely and efficiently the dosing of chemicals in liquid state.
This series of pumps is characterized by:
Adjustment range (1:3000)
High precision
High suction capacity even with viscous products.
The flow range covers needs from 1.5 l/h (0.40 gph) at a pressure of up to 16 bar (232 psi).
The choice of the correct head material between PP, PVDF and stainless steel allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.
There is an APP available for DOSmart AC pumps which allows to monitor and control easily the unit remotely. The APP also has the option to receive alarm messages through SMS and email.
Advanced Dosing Functions
(ST) STANDARD
100% Operation | 50% Operation
(SS1) SLOW SUCTION
Slow suction cycle for a reliable dosing for high viscosity fluids
(SS2) SLOW SUCTION AND DISCHARGE
Slow suction cycle for a reliable dosing for high viscosity fluids
| Electrical information | 1 phase 100-250 Vac (50/60Hz) / 24 Vdc |
| Power | 32 W |
| Diaphragm material | PTFE |
| Cylinder material | PP/PVDF/SS |
| Valves (body) material | PP/PVDF/SS |
| Weight | 4,5 kg (10 lb) |
| Order-driven inventory | |
| Dosage rate | Many possibilities |
| Water flow | Works regardless of water flow |
| Working pressure | Upcoming info |
| Dosing flow | N/A |
| Outer tube diameter (O.D.) | Upcoming info |
| Connection type | Upcoming info |
