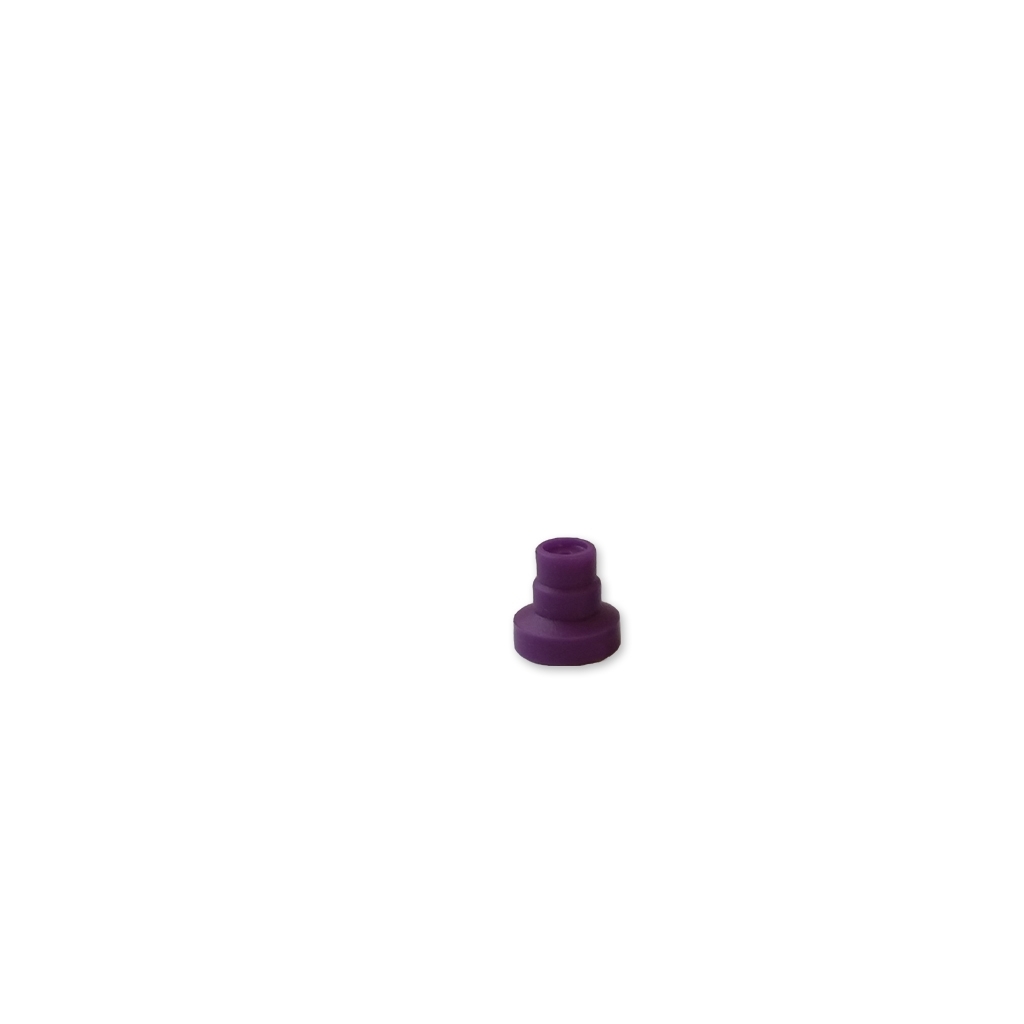

Dan violet nozzle 9.2 gph (0.032") (50/pk)
150-130-021100-50
- Irrig_Jain_Dan-modular_group-FT_V2015-09_FR.pdf
- Irrig_Jain_Dan-modular_group-FT_V2013-11_EN.pdf
- Irrig_Jain_Dan-modular_group_tunnel-FT_V2014-03_EN.pdf
- Irrig_Jain_Micro-aspersion_Naandanjain-Catalogue_V2015-09_FR.pdf
- Irrig_Jain_Micro-sprinkler_Naandanjain-Catalogue_V2017-02_EN.pdf
- Irrig_Jain_Greenhouse_Naandanjain-Catalogue_V2014-03_EN.pdf
- Irrig_Jain-Greenhouse-Catalogue_V2014-12_EN.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
The Dan nozzle is a part of a Dan Modular Group sprinkler system. It must be installed on the base of the Dan Bridge to control the flow of water from the irrigation system.
| Model | Violet (.032") Modular Nozzle |
| Quantity per package |
50 / bag |
| Opening Diameter |
0.032" (0.82mm) |
| Flow |
9.2 gph (35 L/h) @ 29PSI |
| Other parts of DAN MODULAR GROUP package sold separately |
irrigation line connector micro tube stabilizer weight Dan spinner/spreader Dan bridge Dan antimist (optional) |
| Applications | Greenhouses, tunnels, multichapels and other closed structures, nursery, etc. |
| Specifications |
•Wetting diameter: 1 to 10 meters (2.6 to 36.1 feets) depending on the selected nozzle and spinner / spreader (sold separately) •Recommended pressure regulator: 35 PSI (ou 1.5 à 3.0 bar / 15 à 50 PSI) purple and brown nozzles: minimum 130 μ (120 mesh) other nozzles: minimum 200 μ (70 mesh) |
| Features & Benefits |
The Dan modular micro-sprinklers and micro-jets offers a wide range of jets to meet all needs of diameter, shape and watering rate. This suspended or inverted irrigation system saves a lot of labor time while providing unrivaled uniformity. Please consult our representatives for a nozzle assembly that meets your specific watering, humidification or misting requirements. |
The Dan nozzle is a part of a Dan Modular Group sprinkler system. It must be installed on the base of the Dan Bridge to control the flow of water from the irrigation system.
| Model | Violet (.032") Modular Nozzle |
| Quantity per package |
50 / bag |
| Opening Diameter |
0.032" (0.82mm) |
| Flow |
9.2 gph (35 L/h) @ 29PSI |
| Other parts of DAN MODULAR GROUP package sold separately |
irrigation line connector micro tube stabilizer weight Dan spinner/spreader Dan bridge Dan antimist (optional) |
| Applications | Greenhouses, tunnels, multichapels and other closed structures, nursery, etc. |
| Specifications |
•Wetting diameter: 1 to 10 meters (2.6 to 36.1 feets) depending on the selected nozzle and spinner / spreader (sold separately) •Recommended pressure regulator: 35 PSI (ou 1.5 à 3.0 bar / 15 à 50 PSI) purple and brown nozzles: minimum 130 μ (120 mesh) other nozzles: minimum 200 μ (70 mesh) |
| Features & Benefits |
The Dan modular micro-sprinklers and micro-jets offers a wide range of jets to meet all needs of diameter, shape and watering rate. This suspended or inverted irrigation system saves a lot of labor time while providing unrivaled uniformity. Please consult our representatives for a nozzle assembly that meets your specific watering, humidification or misting requirements. |
| Part type | Sprinkler / nozzle |
| Irrigation type | Sprinkling on table 4' to 6' |
| Irrigation type | Sprinkling on table 10' to 38' |
| Quantity per pack | 50 |
| Irrigation type | Misting |
| Inventory stocked |
