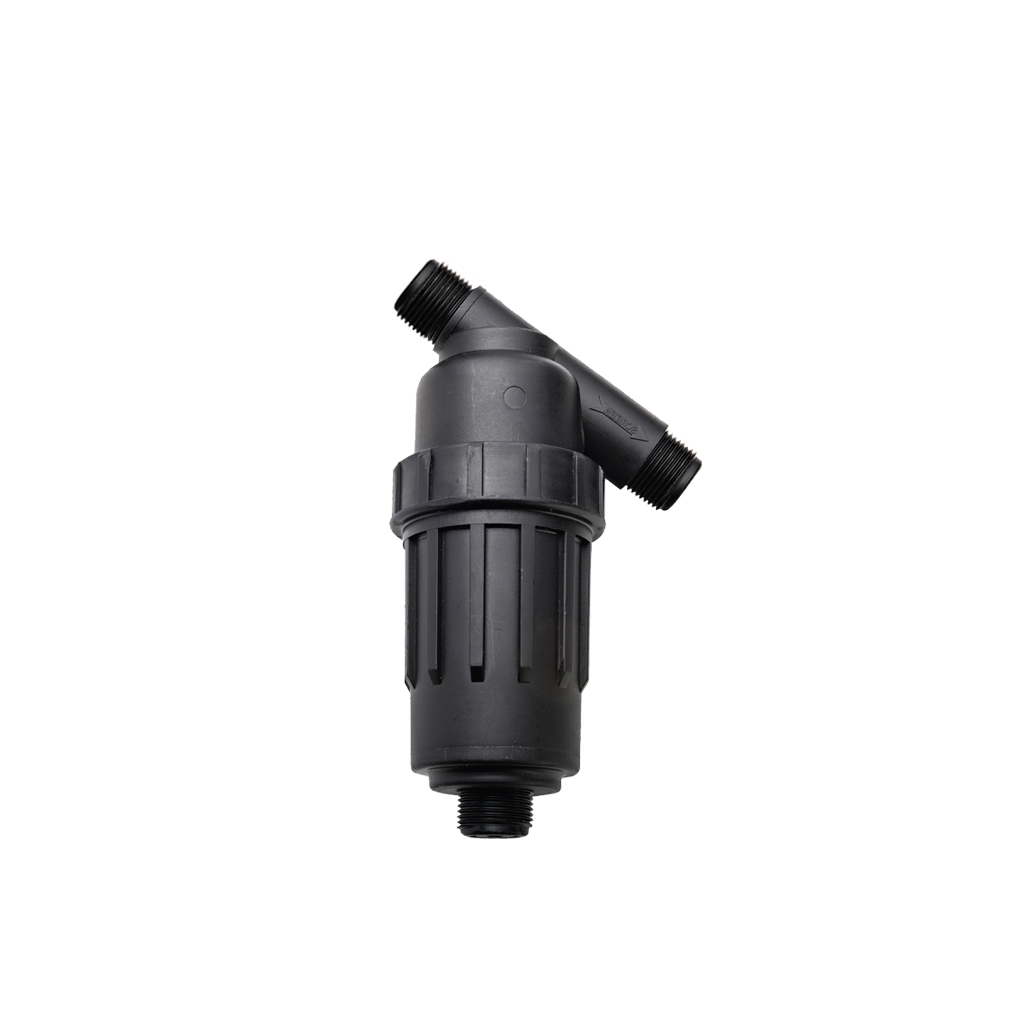

Screen filter 3/4" 155 mesh Netafim
150-140-011000
Disponibilité:
backordered
Délai d’expédition si en rupture de stock:
jusqu'à 3 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
150-140-011000
Our plastic filters are easily removable to allow easy maintenance of the screen to rinse it.
| Model | Manual screen filter SF075-155 |
| Include | Filter (housing) and 155 mesh cartridge (screen) |
| Filter Inlet x Outlet size | 3/4'' MPT x 3/4'' MPT |
| Flush Outlet size | 3/4'' MPT (unperforated) |
| Screen area | 155 mesh (90 microns) |
| Maximum Inlet Pressure | 140 PSI (9.6 bar) |
| Working Flow | 1 to 13 gpm (227 to 2953 L/h) |
| Filtration area | 14.9 in2 |
| Filter size | Approx. 12 x 16 x 3 cm (4.76" x 6.30" x 1.22") |
| Screen size | 15 x 3.8 cm |
| Material | Polypropylene filter, green nylon cartridge (screen) 155 mesh and EPDM rubber o-rings |
We have a range of filters that can meet all the needs of irrigation system in greenhouse, fields or nursery. Sieve filters have the advantage of being less expensive, while disc filters collect more dirt (greater filtration area) and are more durable.
| Outer tube diameter (O.D.) | 3/4 " |
| Inventory stocked | |
| Screen area | 155 mesh (100 microns) |
| Connection type | Male pipe thread (MPT) |
| Connection type | MPT x MPT |
Submit a Ticket
Our plastic filters are easily removable to allow easy maintenance of the screen to rinse it.
| Model | Manual screen filter SF075-155 |
| Include | Filter (housing) and 155 mesh cartridge (screen) |
| Filter Inlet x Outlet size | 3/4'' MPT x 3/4'' MPT |
| Flush Outlet size | 3/4'' MPT (unperforated) |
| Screen area | 155 mesh (90 microns) |
| Maximum Inlet Pressure | 140 PSI (9.6 bar) |
| Working Flow | 1 to 13 gpm (227 to 2953 L/h) |
| Filtration area | 14.9 in2 |
| Filter size | Approx. 12 x 16 x 3 cm (4.76" x 6.30" x 1.22") |
| Screen size | 15 x 3.8 cm |
| Material | Polypropylene filter, green nylon cartridge (screen) 155 mesh and EPDM rubber o-rings |
We have a range of filters that can meet all the needs of irrigation system in greenhouse, fields or nursery. Sieve filters have the advantage of being less expensive, while disc filters collect more dirt (greater filtration area) and are more durable.
