Watch Guard 440.23BT.acid acid injection system for MixRite combination
160-140-065500
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Only replenished IF YOU ORDER IT
The Watch Guard system automatically adjusts the pre-diluted acid level in the acid stock solution tank! It reduces dangerous manipulations! Watch Guard is a dilution system equipped with a float valve and designed to provide a dilute solution from a small tank such as a barrel, tank or other. Connected to a standard water supply system (3/4" FHT or 1/4" MPT), the Watch Guard system automatically activates water supply and keeps the tank full, ensuring a constant solution diluted with MixRite. Then the MixRite installed on the irrigation line uses the water pressure to precisely dilute the solution, regardless of flow and pressure changes (as long as the latter respects the operating specification of the device) . The Watch Guard + MixRite combination can produce a solution as low as 5 PPM.
- Connected to a water supply system, the Watch Guard system automatically activates the water supply via a float valve. It activates automatically to keep a tank filled with diluted solution
- Effective with acid, chlorine and most chemicals;
Easily installs on any barrel, tank or tank - Allows you to precisely reach an ultra low dilution ratio in 2 easy steps
- Measuring tips included for dilutions of 1:7 to 1:387
- Produces a precise solution, no matter the pressure flow changes
- Combining the two devices (Watch Guard 440.23BT.acid and MixRite) achieves a dilution of 1: 350 (2857 ppm) to 1: 193000 (5ppm);
- Several MixRite models are available for an injection ratio ranging from 0.1% to 10% and for a flow rate of 0.08 to 110 gallons per minute.
- Very economical!
| Model | Watch Guard 440.23BT.ACID |

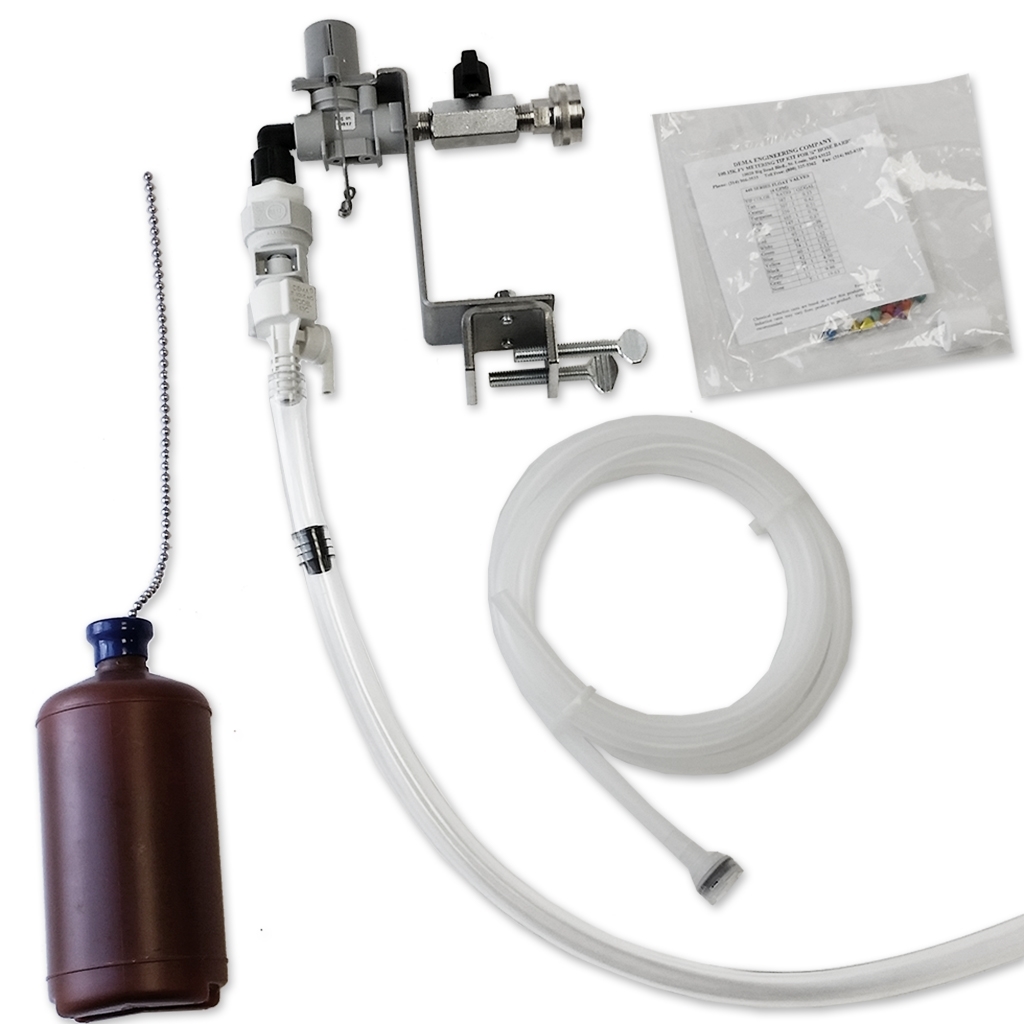

| Included | Valve Assembly and Brackets Proportioner with Backflow Preventer 8’ Long Vinyl Supply Tubing & Foot Valve Assembly Float and Chain Ceramic Weight ½” ID X 3’ Long Vinyl Discharge Tubing w/Priming Insert Metering Tip Kit |
| Flow range "to operate properly" | 4.0 gpm @40 PSI |
| Dosage rate | 0.26% - 14.3% (1:387 - 1:7) |
| Working pressure | 15-150 psi (1.0-10.3 bar) |
| Operation temperature | 0.6-49.0°C (33-120°F) |
| Air release system | Air release (Allows an automatic release of the blocked air in the water line) |
| Inlet size | 3/4" FHT ou 1/4" MPT |
| Typical chemical application |
Most acids types Chlorine Most chemicals Etc. |
The Watch Guard system automatically adjusts the pre-diluted acid level in the acid stock solution tank! It reduces dangerous manipulations! Watch Guard is a dilution system equipped with a float valve and designed to provide a dilute solution from a small tank such as a barrel, tank or other. Connected to a standard water supply system (3/4" FHT or 1/4" MPT), the Watch Guard system automatically activates water supply and keeps the tank full, ensuring a constant solution diluted with MixRite. Then the MixRite installed on the irrigation line uses the water pressure to precisely dilute the solution, regardless of flow and pressure changes (as long as the latter respects the operating specification of the device) . The Watch Guard + MixRite combination can produce a solution as low as 5 PPM.
- Connected to a water supply system, the Watch Guard system automatically activates the water supply via a float valve. It activates automatically to keep a tank filled with diluted solution
- Effective with acid, chlorine and most chemicals;
Easily installs on any barrel, tank or tank - Allows you to precisely reach an ultra low dilution ratio in 2 easy steps
- Measuring tips included for dilutions of 1:7 to 1:387
- Produces a precise solution, no matter the pressure flow changes
- Combining the two devices (Watch Guard 440.23BT.acid and MixRite) achieves a dilution of 1: 350 (2857 ppm) to 1: 193000 (5ppm);
- Several MixRite models are available for an injection ratio ranging from 0.1% to 10% and for a flow rate of 0.08 to 110 gallons per minute.
- Very economical!
| Model | Watch Guard 440.23BT.ACID |
| Included | Valve Assembly and Brackets Proportioner with Backflow Preventer 8’ Long Vinyl Supply Tubing & Foot Valve Assembly Float and Chain Ceramic Weight ½” ID X 3’ Long Vinyl Discharge Tubing w/Priming Insert Metering Tip Kit |
| Flow range "to operate properly" | 4.0 gpm @40 PSI |
| Dosage rate | 0.26% - 14.3% (1:387 - 1:7) |
| Working pressure | 15-150 psi (1.0-10.3 bar) |
| Operation temperature | 0.6-49.0°C (33-120°F) |
| Air release system | Air release (Allows an automatic release of the blocked air in the water line) |
| Inlet size | 3/4" FHT ou 1/4" MPT |
| Typical chemical application |
Most acids types Chlorine Most chemicals Etc. |
| Order-driven inventory |
