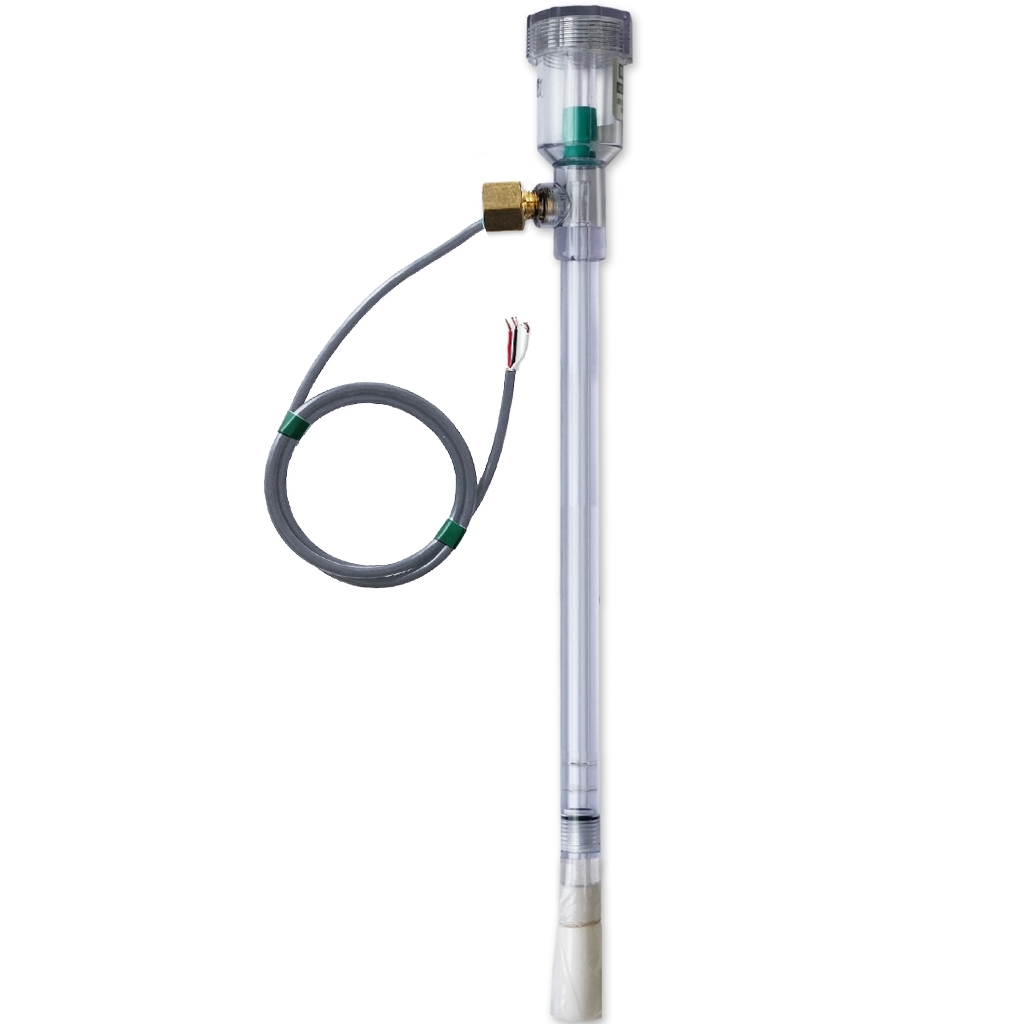

18" SR tensiometer + RSU-Voltage 0-93 kPa (white ceramic)

160-110-071800

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/3947/image_1920?unique=f941933
Unit(s)

    This combination does not exist.

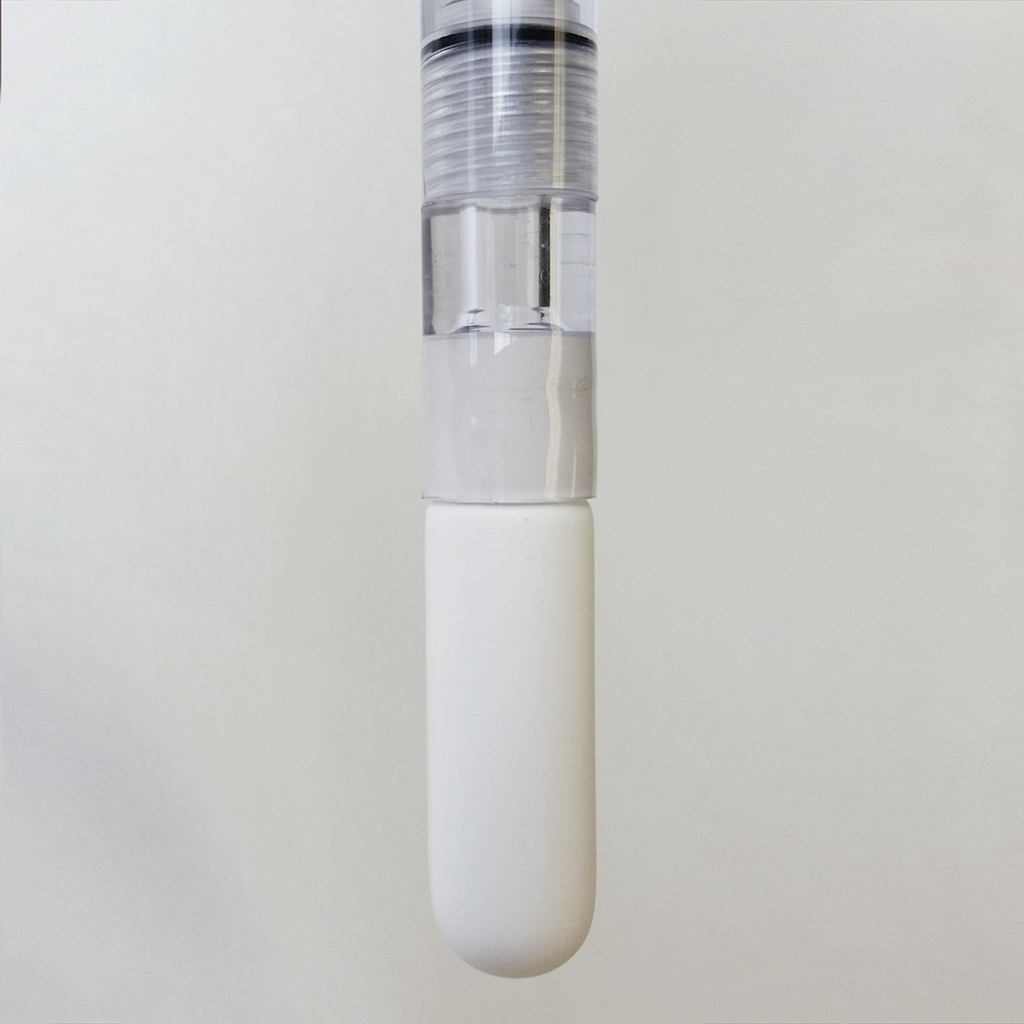

    "SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model SR (Standard with replaceable ceramic tip) +  RSU-V (Voltage) block 0-94 cb (kPa)

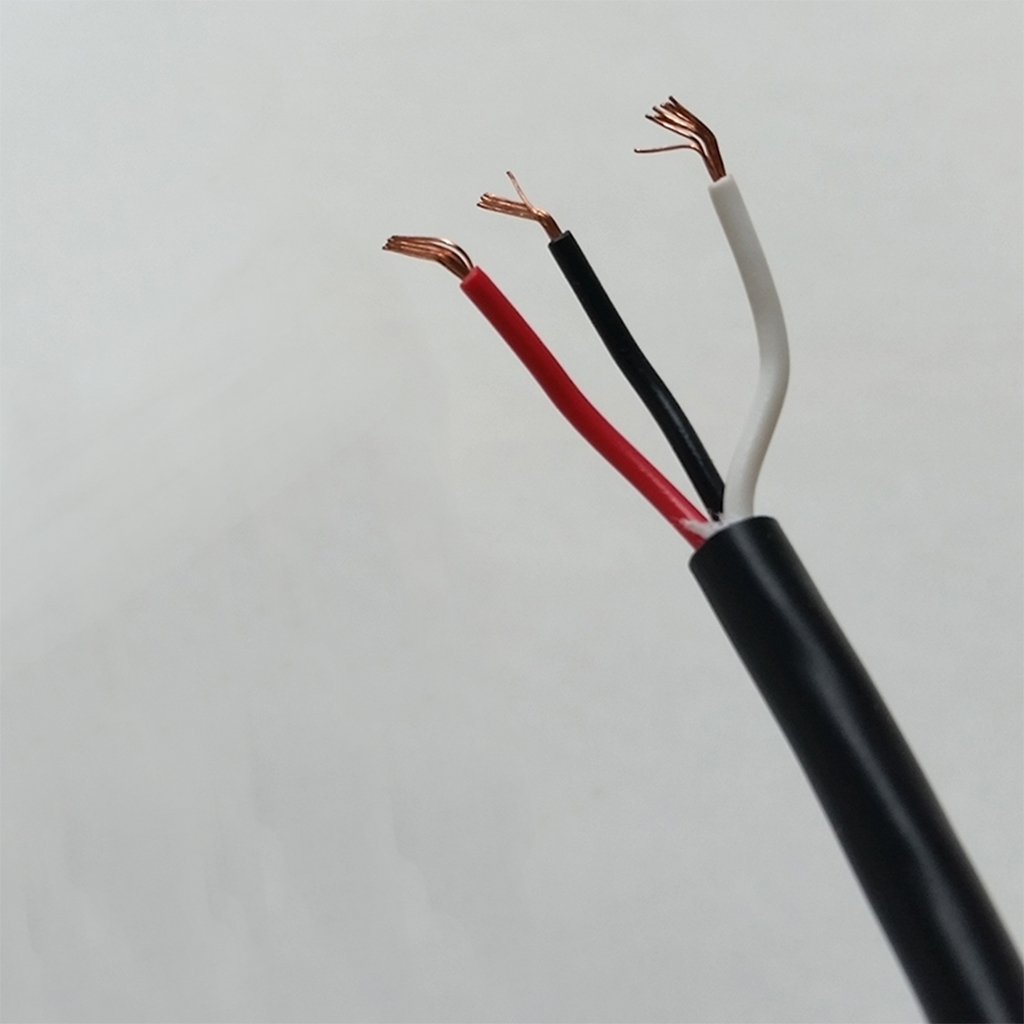

    Include Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long
    Height from the bottom of the RSU block 18"
    Total height 24"
    Tensiometer tube diameter 0,875"
    RSU block reading window 0-94 kPa
    Supply 5 VDC (regulated), 10 mA
    Output (voltage) 0.5 to 4.5 V, 2.5 mA
    Calibration 0.0426 V/cb



    "SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model SR (Standard with replaceable ceramic tip) +  RSU-V (Voltage) block 0-94 cb (kPa)
    Include Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long
    Height from the bottom of the RSU block 18"
    Total height 24"
    Tensiometer tube diameter 0,875"
    RSU block reading window 0-94 kPa
    Supply 5 VDC (regulated), 10 mA
    Output (voltage) 0.5 to 4.5 V, 2.5 mA
    Calibration 0.0426 V/cb

    Length 18"
    Model SR
    Sensor Type Soil moisture
    Block type RSU-Voltage 0-94 kPa
