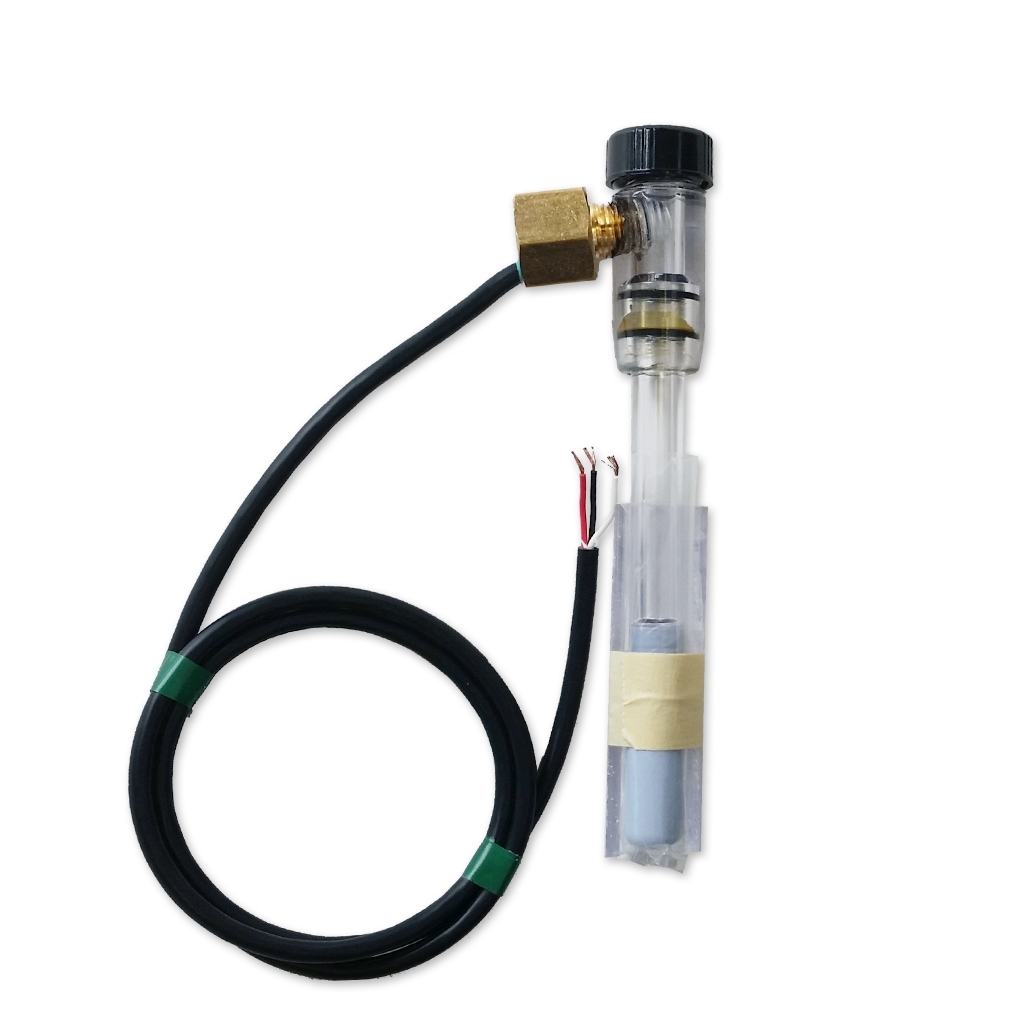

6" MLT tensiometer + RSU-Voltage 0-93 kPa, Ø 0.5" (blue ceramic)

160-110-072500

https://ghlinc.odoo.com/web/image/product.template/3954/image_1920?unique=a798b70

181.67 $ CAD 181.67000000000002 CAD 181.67 $ CAD

181.67 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    The model "MLT" (miniature low tension) is designed, as is the "LT" model for situations where voltages above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed.  Includes a replaceable Quick-Flo (blue) but smaller in size than the "LT" tip.

    The model "MLT" tensiometer is ideal for very coarse soils and potting substrates. Its size makes it a good choice for taking reading in small pots.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model MLT (miniature low tension) + RSU-V (Voltage) block 0-94 cb (kPa)
    Include Tensiometer and RSU block with wire 1/8'' NPT x about 2.5 '' long
    Height from the bottom of the tube to the hole for the RSU block 6''
    Total height 7''
    Tensiometer tube diameter 0.5"
    RSU block reading window 0-94 kPa
    Supply 5 VDC (regulated), 10 mA
    Output (voltage) 0.5 to 4.5 V, 2.5 mA
    Calibration 0.0426 V/cb



    The model "MLT" (miniature low tension) is designed, as is the "LT" model for situations where voltages above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed.  Includes a replaceable Quick-Flo (blue) but smaller in size than the "LT" tip.

    The model "MLT" tensiometer is ideal for very coarse soils and potting substrates. Its size makes it a good choice for taking reading in small pots.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model MLT (miniature low tension) + RSU-V (Voltage) block 0-94 cb (kPa)
    Include Tensiometer and RSU block with wire 1/8'' NPT x about 2.5 '' long
    Height from the bottom of the tube to the hole for the RSU block 6''
    Total height 7''
    Tensiometer tube diameter 0.5"
    RSU block reading window 0-94 kPa
    Supply 5 VDC (regulated), 10 mA
    Output (voltage) 0.5 to 4.5 V, 2.5 mA
    Calibration 0.0426 V/cb

    Control By computer
    Length 6"
    Model MLT
    Inventory stocked
    Sensor Type Soil moisture
    Block type RSU-Voltage 0-94 kPa
