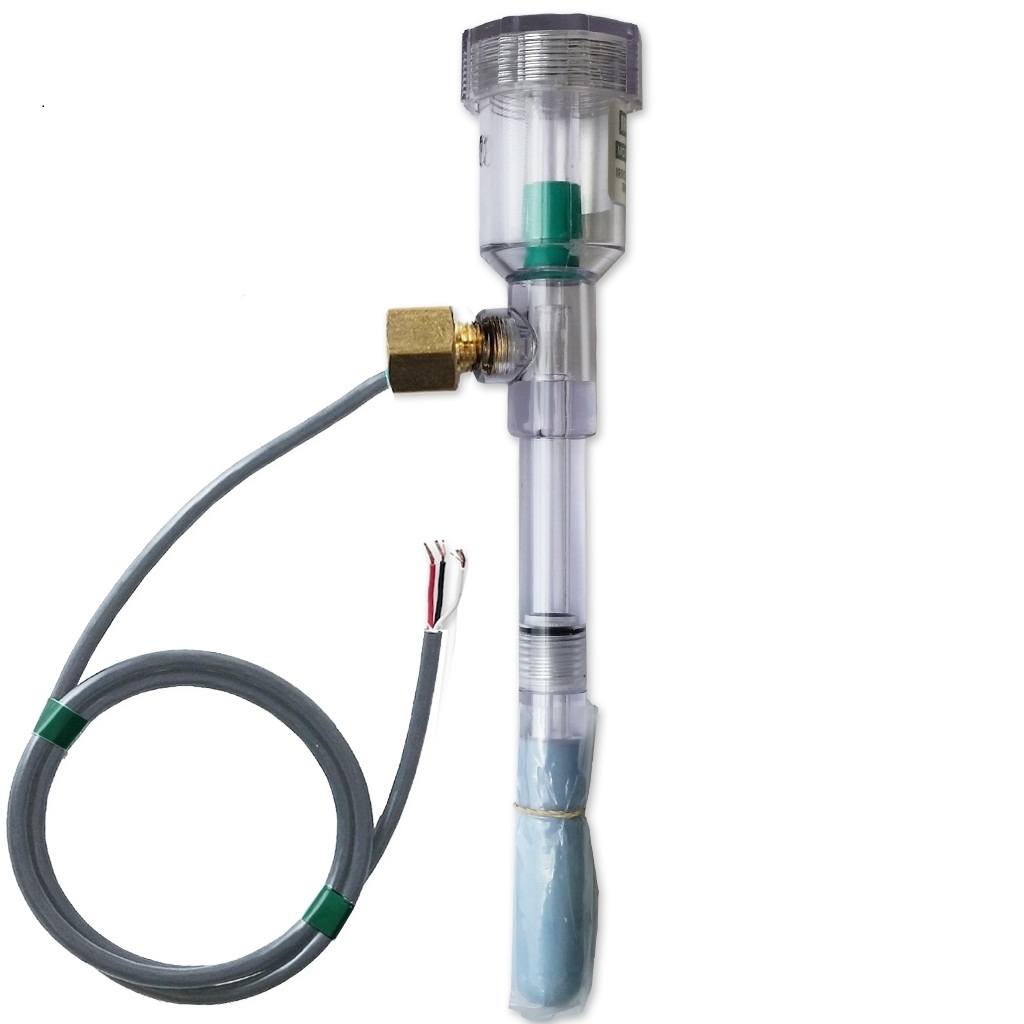

6'' LT tensiometer + RSU-Voltage 0-93 kPa (blue ceramic)
160-110-072950
- Tensiometer_Irrometer_Model_LT-FT_V2014-03_EN.pdf
- Tensiometer_Irrometer_Automation_wire_extension-FT_V2016-10_EN.pdf
- Tensiometer_Irrometer_Automation_RSU-V-Manual_V2016-10-21_EN.pdf
- Tensiometer_Irrometer_Reference_book-Manual_V2015-02_EN.pdf
- Tensiometer_Irrometer_Quick_installation_guide_V2012-02_EN.pdf
- Tensiometer_Irrometer_Recommendations_sensor_interpretations_V2013-03_EN.pdf
- Tensiometer_Irrometer_Irrigation_design-Manual_V2006-01-20_EN.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 2 semaines
In case of backorder::
Usually kept in stock, will be available soon
"LT" (low tension) model is designed for situations where tensions above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed. Incorporates a replaceable Quick-Flo tip (blue color).
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | LT (low tension) + RSU-V (Voltage) block 0-94 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 6" |
| Total height | 12" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
"LT" (low tension) model is designed for situations where tensions above 30 cb (kPa) are rarely expected. Ideal for very coarse soils and non-soil container-media such as in greenhouses crops or where rapidly changing soil water status needs to be observed. Incorporates a replaceable Quick-Flo tip (blue color).
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | LT (low tension) + RSU-V (Voltage) block 0-94 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 6" |
| Total height | 12" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
| Length | 6" |
| Model | LT |
| Inventory stocked | |
| Sensor Type | Soil moisture |
| Block type | RSU-Voltage 0-94 kPa |
