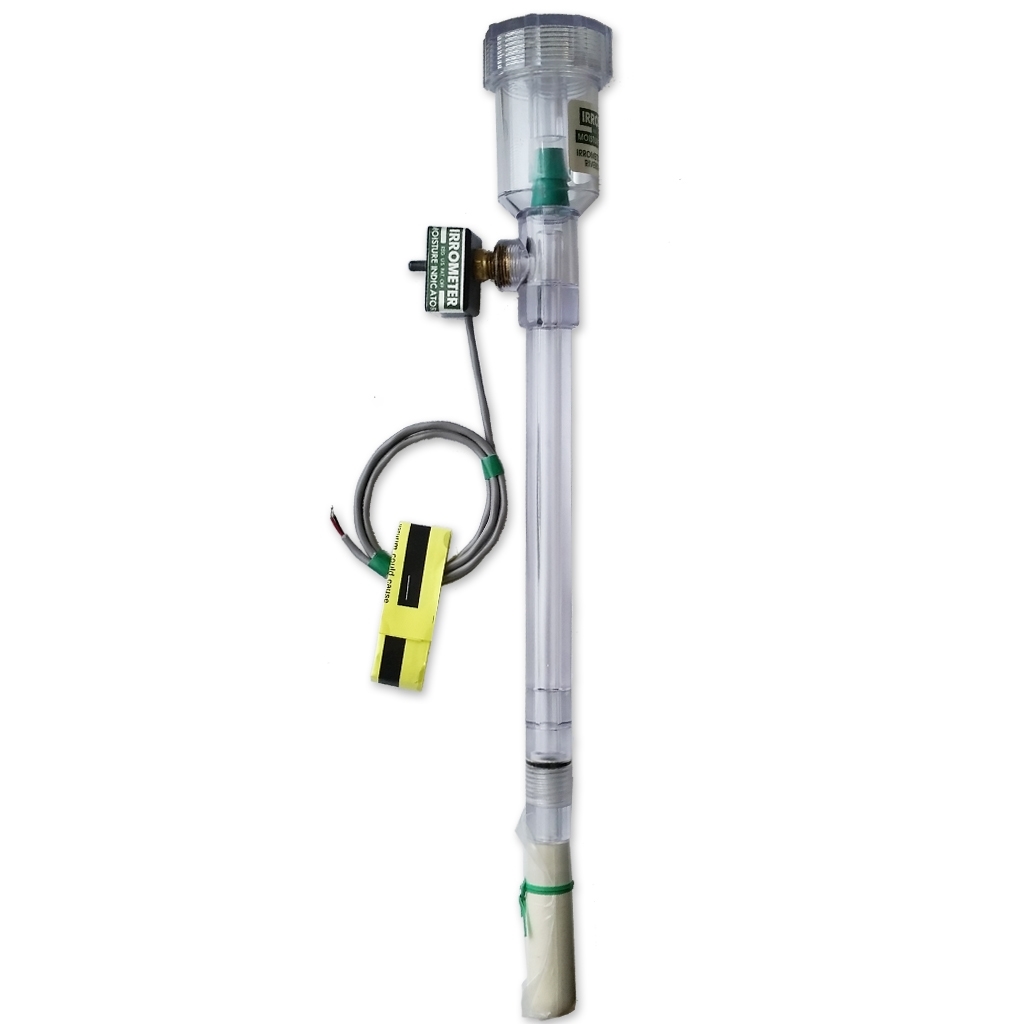

12" SR tensiometer + RSU-Current 0-93 kPa, Ø 0.875" (white ceramic)

160-110-072900

https://boutiquepro.ghlinc.com/web/image/product.template/3958/image_1920?unique=6134a9a

284.13 $ CAD 284.13 CAD 284.13 $ CAD

284.13 $ CAD

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    "SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 93 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model SR (Standard with replaceable ceramic tip) + RSU-C block 0-93 cb (kPa)
    Include Tensiometer and RSU block with wire 1/8'' NPT x about 2.5'' long
    Height from the bottom of the RSU block 12"
    Total height 18"
    Tensiometer tube diameter 0,875"
    RSU block reading window 0-93 kPa
    Supply 12–24 VDC
    Output (current) 4-20mA
    Calibration 4-20mA = 0-93 kPa (0.172 mA per kPa)



    "SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.



    • For optimal irrigation management
    • Measures the tension of a substrate (water availability) on a window from 0 to 93 kPa. This
      sensor requires an electronic interface (control computer or controller) for an accurate reading of
      the tension of the substrate.
    • When using the combined STERLING + tensiometer + stand-alone controller, you can set the
      STERLING to wait for a desired tension before irrigation begins to limit the cracking of
      tomatoes and promote deeper roots.
    • In addition, a producer who is scheduled to be absent may program the stand-alone
      Retains afternoon irrigation schemes if the plant has not consumed water
      Available due, for example, to the presence of clouds.



    Model SR (Standard with replaceable ceramic tip) + RSU-C block 0-93 cb (kPa)
    Include Tensiometer and RSU block with wire 1/8'' NPT x about 2.5'' long
    Height from the bottom of the RSU block 12"
    Total height 18"
    Tensiometer tube diameter 0,875"
    RSU block reading window 0-93 kPa
    Supply 12–24 VDC
    Output (current) 4-20mA
    Calibration 4-20mA = 0-93 kPa (0.172 mA per kPa)

    Control By computer
    Length 12"
    Model SR
    Order-driven inventory
    Sensor Type Soil moisture
    Block type RSU-Current 0-93 kPa
