RW402-25\230\1\OC\P\C\86 greenhouse vent winder Ridder motor

160-120-091200

Call For Price https://ghlinc.odoo.com/web/image/product.template/4107/image_1920?unique=0f6f51e

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: 2-6 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT

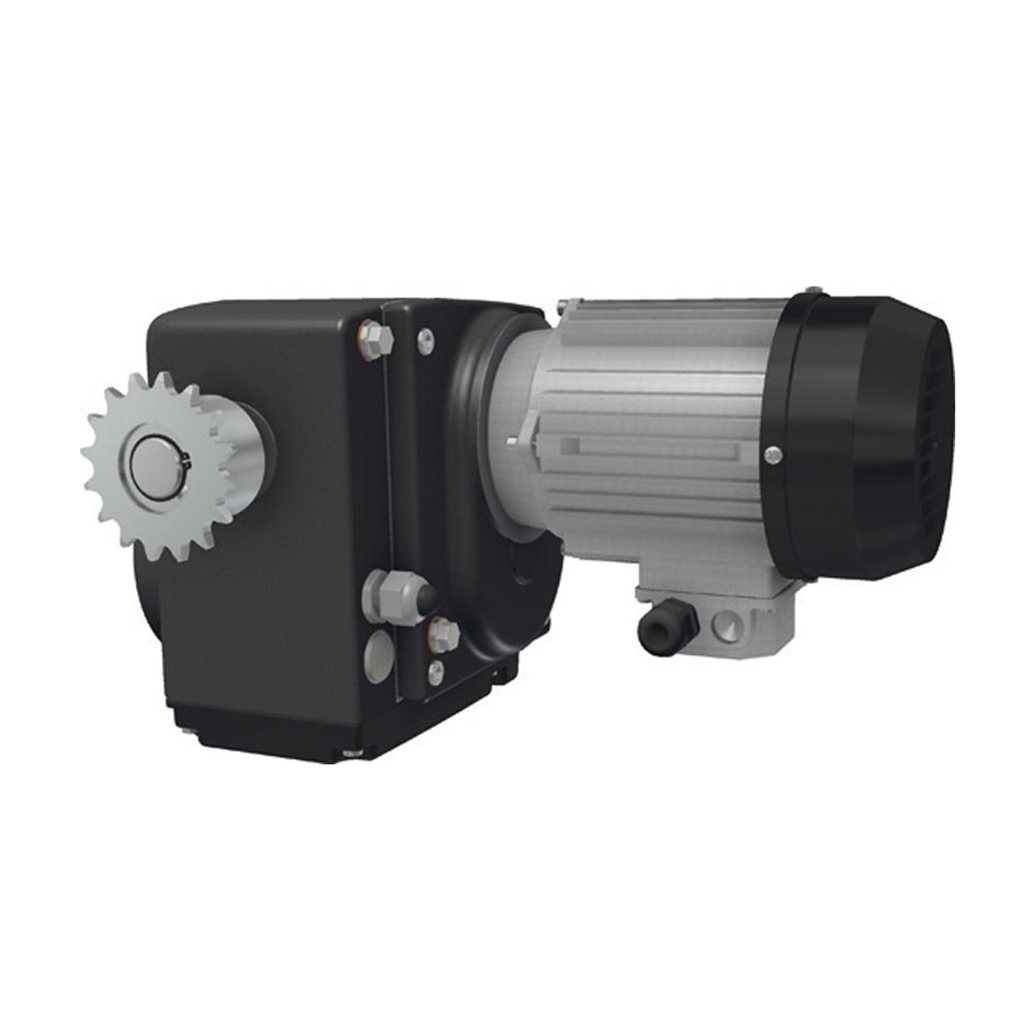

    * The motor color and actual shape may differ from that of the image.



    The RW400 motor gearboxes are maintenance-free, compact drive units for operating ventilation, screen and lifting systems in greenhouses and livestock houses.



    Model
    RW402-25\230\1\OC\P\C\86
    Motor
    1-phase, 230V @ 50/60 Hz (EM type E) 0.25kW
    Electric Supply
    230 Volts AC
    Torque
    400 Nm (@ 50/60 Hz)
    RPM
    2.0 turns/min (@ 50 Hz) / 2.4 turns/min (@ 60 Hz)
    Limit Range (No. of turns)
    86 turns
    Reduction Method
    Self-braking worm gear transmission
    Weight
    31.5 kg



    All RW400 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.

    The RW400 motor gearboxes feature a patented integrated linear limit switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit switch system equates to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller. This position feedback can also be achieved using an installation set with a potentiometer.

    The RW400 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.




    * The motor color and actual shape may differ from that of the image.



    The RW400 motor gearboxes are maintenance-free, compact drive units for operating ventilation, screen and lifting systems in greenhouses and livestock houses.



    Model
    RW402-25\230\1\OC\P\C\86
    Motor
    1-phase, 230V @ 50/60 Hz (EM type E) 0.25kW
    Electric Supply
    230 Volts AC
    Torque
    400 Nm (@ 50/60 Hz)
    RPM
    2.0 turns/min (@ 50 Hz) / 2.4 turns/min (@ 60 Hz)
    Limit Range (No. of turns)
    86 turns
    Reduction Method
    Self-braking worm gear transmission
    Weight
    31.5 kg



    All RW400 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.

    The RW400 motor gearboxes feature a patented integrated linear limit switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit switch system equates to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller. This position feedback can also be achieved using an installation set with a potentiometer.

    The RW400 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.
